DC Tubular Motor

JCD25-Series

Certification

Application

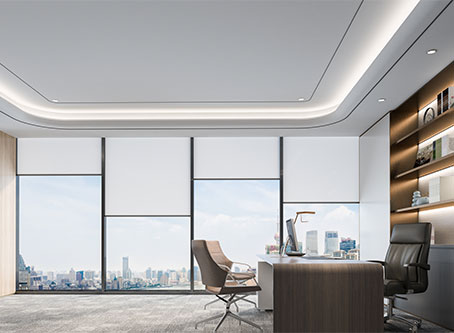

Indoor roller blinds

Indoor roller blinds

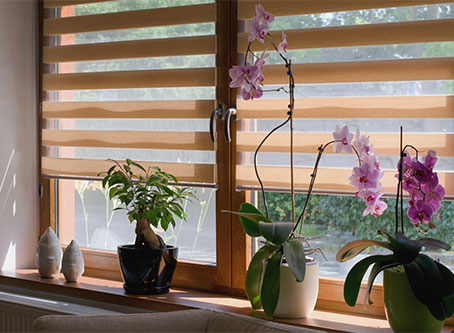

Shangri-La Blinds

Shangri-La Blinds

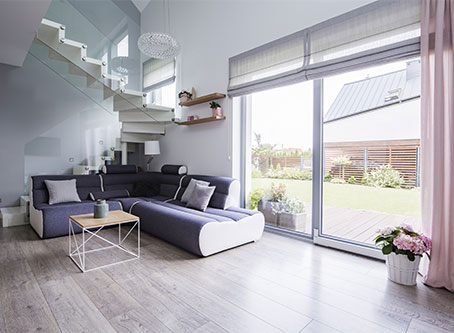

Roman Blinds

Roman Blinds

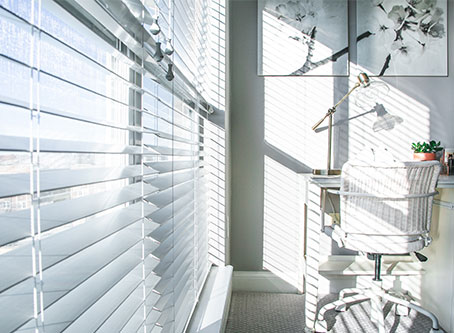

Aluminum Venetian blinds

Aluminum Venetian blinds

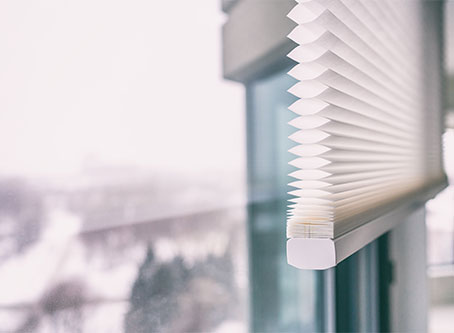

Honeycomb blinds

Honeycomb blinds

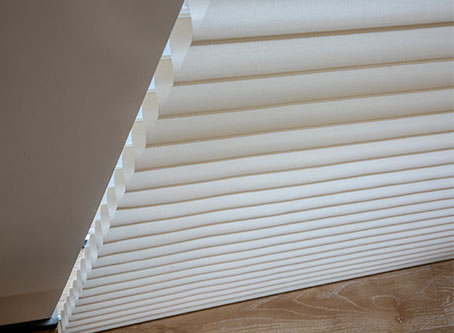

Sheer Blinds

Sheer Blinds

Dimension Drawing

*Click for larger drawings

Product

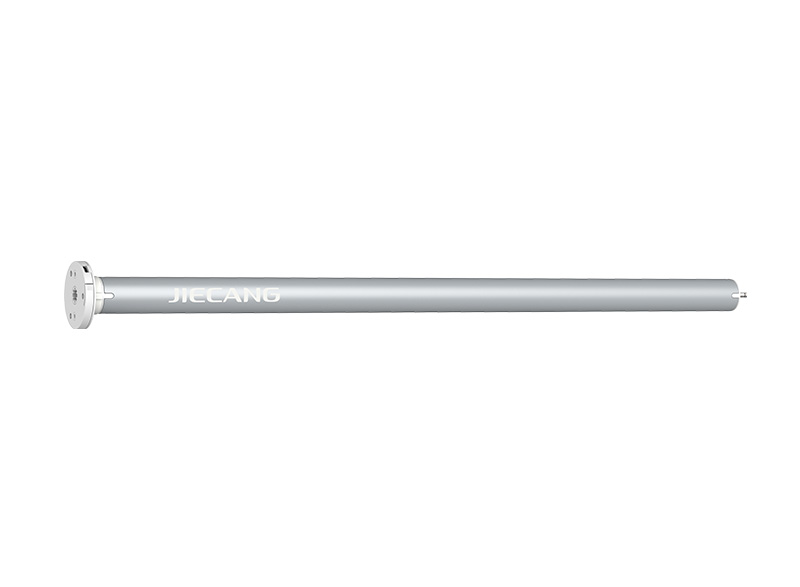

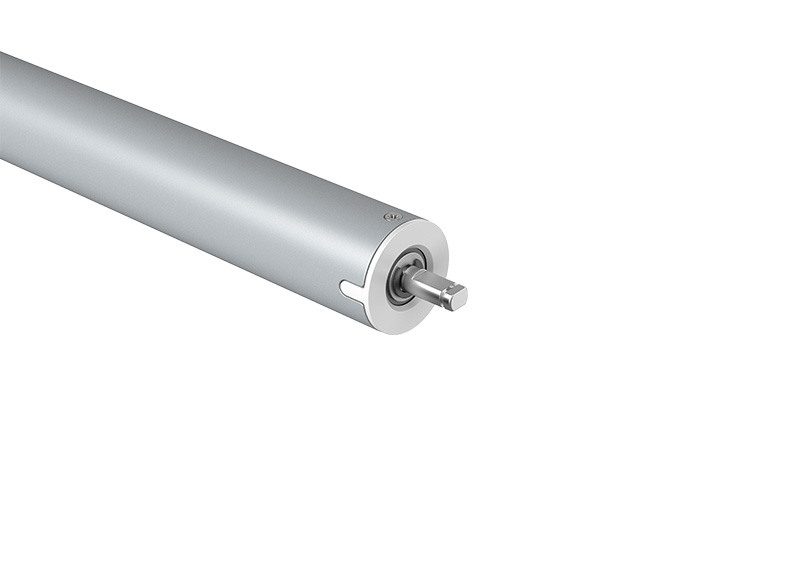

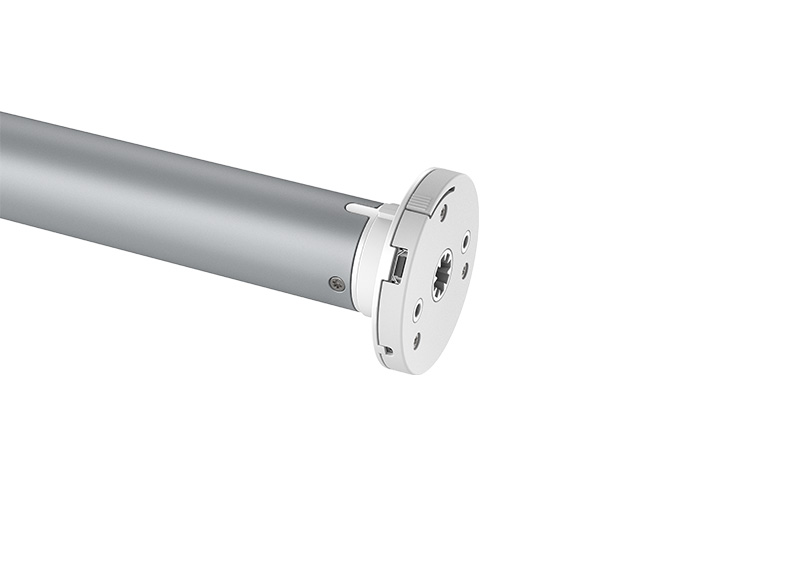

JCD25SLEU
Ф25mm DC Tubular motor -Battery Powered

Features

1. Various torque for widely applicate
2. Built-in battery powered
3. Low standby power design, would operate 4~6 month when fully charged;
4. Powered by adapter or solar panel;
5. Built-in wireless receiver, electronic limit
6. Patented spring arm button design on motor head, good operating feeling
7. Thinnest motor head design, minimize light transmission gap
8. Patented silent motor design, running noise <31dB
9. 3 speeds adjustable
10. Stall Protection
11. Easily set up/down limit, and favorite position

Control

W1/W2/W3/W5 series Emitter

Power supply

Accessories(optional)

40 Slotted curved edge pipe

40 Slotted curved edge pipe

40 straight groove tube

40 straight groove tube

Product Features

Silent technology

The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB
Easy installation

The motor has a built-in rechargeable lithium battery, no wiring is required, and the installation can be completed within a few minutes, solving the problem of no power socket.
Flush management

Precise percentage control, perfect alignment between roller blinds during up/down running;

More Details

Data Download

User Manual

Product Parameter

Model	Rated torque(N.m)	Output speed(rpm)	Rated voltage(V)	Rated current(A)	Rated power(W)	Frequency(MHz)	Power supply(V/A)	Weight(kg)	Length(mm)	IP degree
JCD25SLEU-0730	0.7	25/30/35	5	0.8	9.6	433	USB Charger 5V/2A	0.61	564	IP20
JCD25SLE-0730	0.7	25/30/35	12	0.8	9.6	433	Adapter 12V/1A & Solar Panel	0.61	564	IP20
JCD25SLEU-1130	1.1	25/30/35	5	1	12	433	USB Charger 5V/2A	0.62	564	IP20
JCD25SLE-1130	1.1	25/30/35	12	1	12	433	Adapter 12V/1A & Solar Panel	0.62	564	IP20
JCD25SLEU-1525	1.5	20/25/28	5	1.1	12	433	USB Charger 5V/2A	0.62	564	IP20
JCD25SLE-1525	1.5	20/25/28	12	1.1	12	433	Adapter 12V/1A & Solar Panel	0.62	564	IP20
Related Products
JCD15SLEU-0330	0.3	25/30/35	5	0.6	5	433	USB Charger 5V/2A	0.17	350	IP20
JCD28QLEU-2020	2	20/24/28	5	1.5	18	433	USB Charger 5V/2A	0.83	598	IP20
JCD30QLEU-2020	2	20/24/28	5	1.5	18	433	USB Charger 5V/2A	0.88	598	IP20
JCD35QLEU-6017	6	15/17/20	5	3.6	30	433	USB Charger 5V/2A	1.28	665	IP20
JCD15SLE-0330	0.3	25/30/35	8.4	0.6	5	433	Adapter 8.4V/1A & Solar Panel	0.17	350	IP20
JCD28QLE-2020	2	20/24/28	12	1.5	18	433	Adapter 12V/1A & Solar Panel	0.83	598	IP20
JCD30QLE-2020	2	20/24/28	12	1.5	18	433	Adapter 12V/1A & Solar Panel	0.88	598	IP20
JCD35QLE-6017	6	15/17/20	12	3.6	30	433	Adapter 12V/1A & Solar Panel	1.28	665	IP20
