DC Tubular Motor

JCD25-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

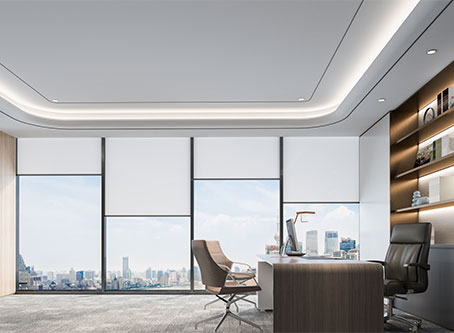

Indoor roller blinds

Indoor roller blinds

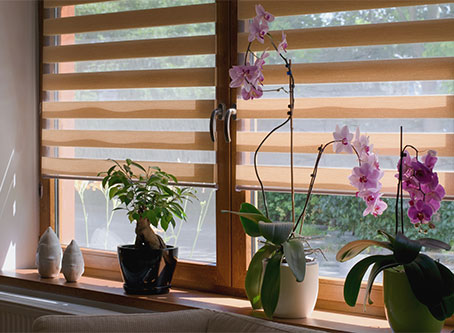

Shangri-La Blinds

Shangri-La Blinds

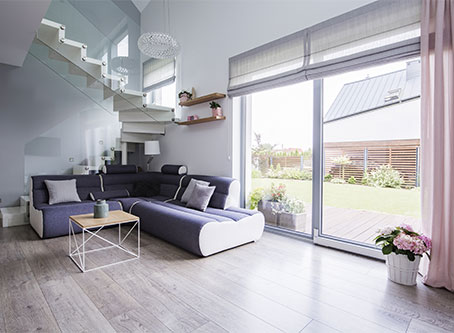

Roman Blinds

Roman Blinds

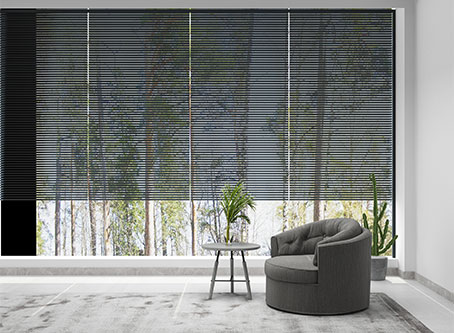

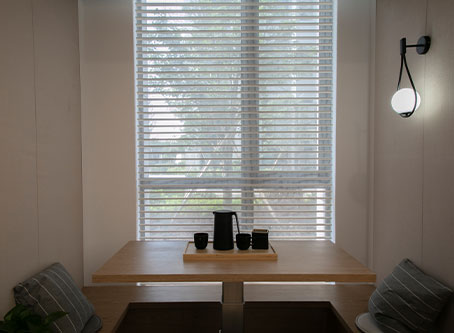

Aluminum Venetian blinds

Aluminum Venetian blinds

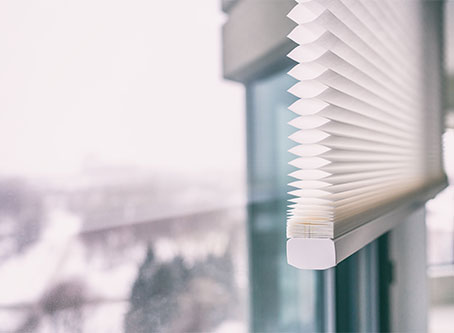

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

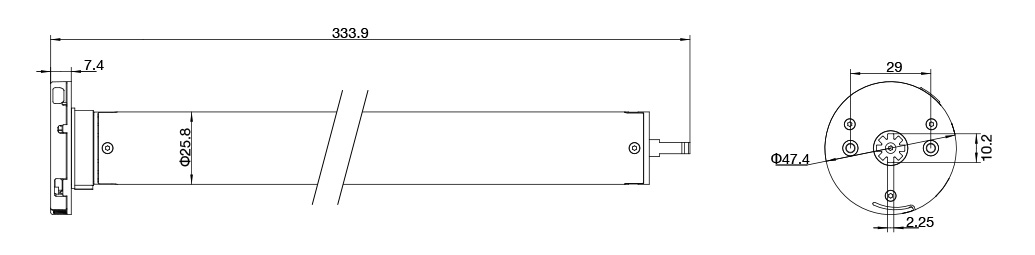

Dimension Drawing

*Click for larger drawings

Product

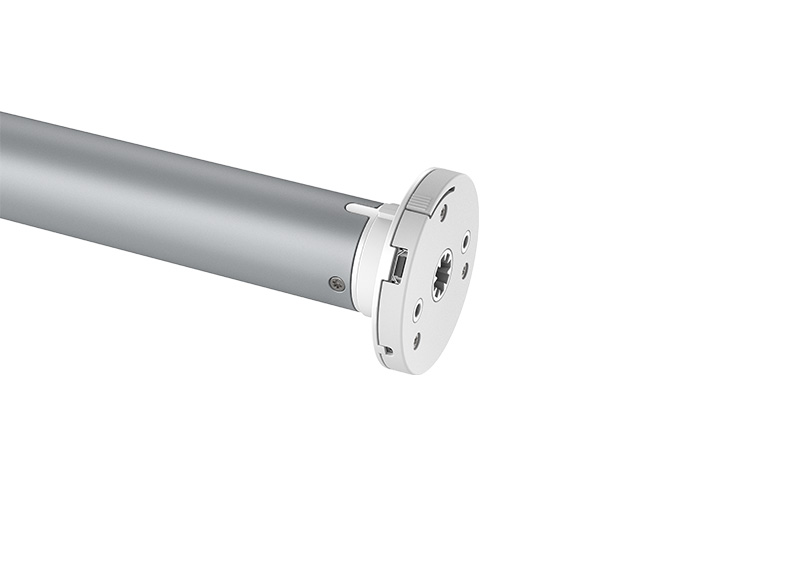

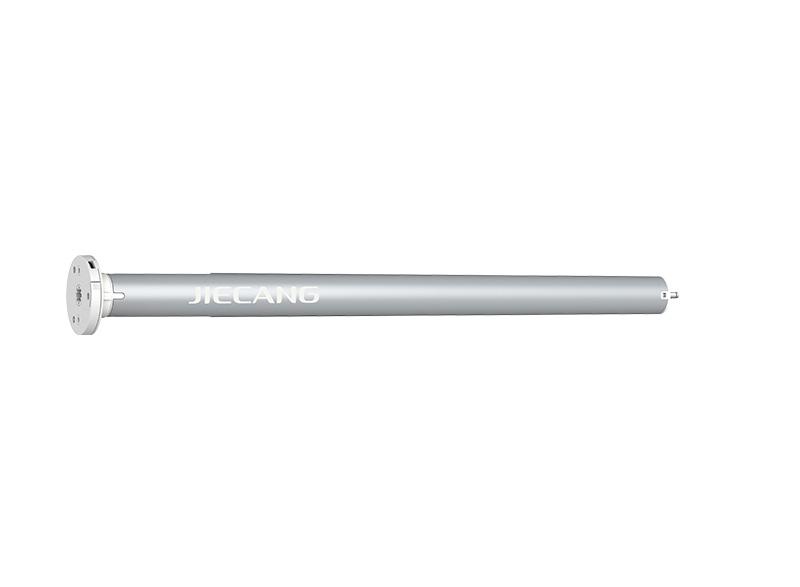

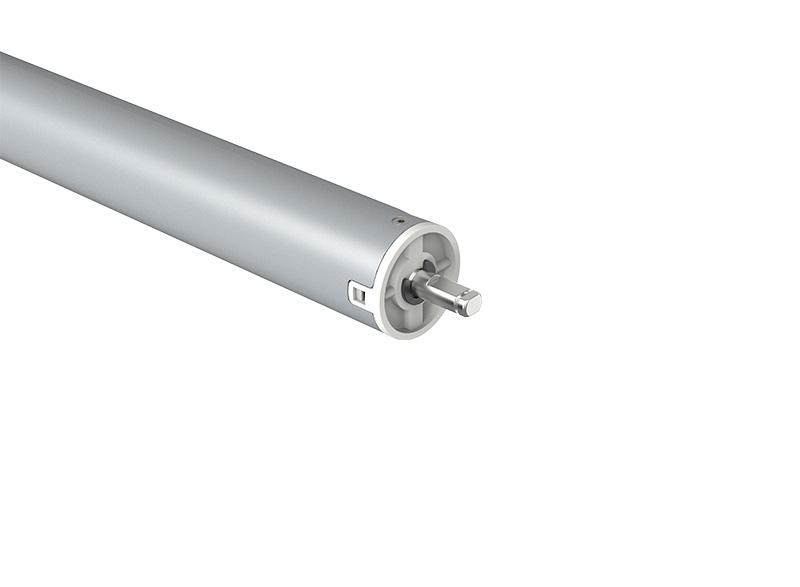

  • JCD25SAE
  • Ф25mm DC Tubular Smart motor-external communication module
Features
  • 1. Various torque for widely applicate
  • 2. Built-in Zigbee module, App and Smart speaker control
  • 3. Extenal adapter, short motor length
  • 4. Built-in wireless receiver, electronic limit
  • 5. Patented spring arm button design on motor head
  • 6. Thinnest motor head design, minimize light transmission gap
  • 7. Patented silent motor design, running noise <31dB
  • 8. 3 speeds adjustable
  • 9. Stall Protection
  • 10. Easily set up/down limit, and favorite position
Control
1.W1/W2/W3/W5 series Emitter
2.App
3.Smart speaker
Power supply

Accessories(optional)

JCD-A-JH07

JCD-A-JH07

JCD-A-JL07

JCD-A-JL07

JCD-A-JH08

JCD-A-JH08

JCD-A-JH06

JCD-A-JH06

JCD-A-JL08

JCD-A-JL08

JCD-A-JL06

JCD-A-JL06

JCD-A-JH02

JCD-A-JH02

JCD-A-JH16

JCD-A-JH16

JCD-A-JL02

JCD-A-JL02

JCD-A-JL14

JCD-A-JL14

JCD-A-JH09

JCD-A-JH09

JCD-A-JL09

JCD-A-JL09

28 Round Tube

28 Round Tube

38 groove tube

38 groove tube

40 Slotted curved edge pipe

40 Slotted curved edge pipe

40 straight groove tube

40 straight groove tube

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

  • Intelligent control

    Built-in Zigbee module to achieve a variety of intelligent control methods (mobile app and voice control) and easy integration with home automation systems

  • Flush management

    Precise percentage control, perfect alignment between roller blinds during up/down running;
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCD25SAE-0730 0.7 25/30/35 12 0.8 9.6 433+ External WiFi/Zigbee Adapter12V/2A  0.4 334 IP20
JCD25SAEW-0730 0.7 25/30/35 12 0.8 9.6 433+ built-in WiFi Adapter 12V/2A  0.61 564 IP20
JCD25SAEZ-0730 0.7 25/30/35 12 0.8 9.6 433+ built-in Zigbee Adapter 12V/2A  0.61 564 IP20
JCD25SAEZ-1130 1.1 25/30/35 12 1 12 433+ built-in Zigbee Adapter 12V/2A 0.62 564 IP20
JCD25SAE-1130 1.1 25/30/35 12 1 12 433+ External WiFi/Zigbee Adapter 12V/2A 0.62 564 IP20
JCD25SAEW-1130 1.1 25/30/35 12 1 12 433+ built-in WiFi Adapter 12V/2A 0.62 564 IP20
JCD25SAE-1525 1.5 20/25/28 12 1.1 12 433+ External WiFi/Zigbee Adapter 12V/2A  0.62 564 IP20
JCD25SAEZ-1525 1.5 20/25/28 12 1.1 12 433+ built-in Zigbee Adapter 12V/2A  0.62 564 IP20
JCD25SAEW-1525 1.5 20/25/28 12 1.1 12 433+ built-in WiFi Adapter 12V/2A  0.62 564 IP20
