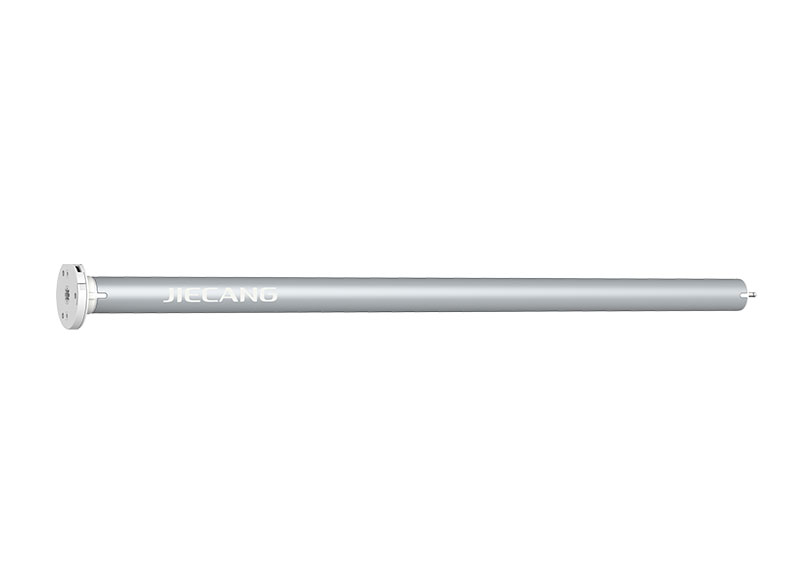

DC Tubular Motor

JCD25-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

Indoor roller blinds

Indoor roller blinds

Shangri-La Blinds

Shangri-La Blinds

Roman Blinds

Roman Blinds

Aluminum Venetian blinds

Aluminum Venetian blinds

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

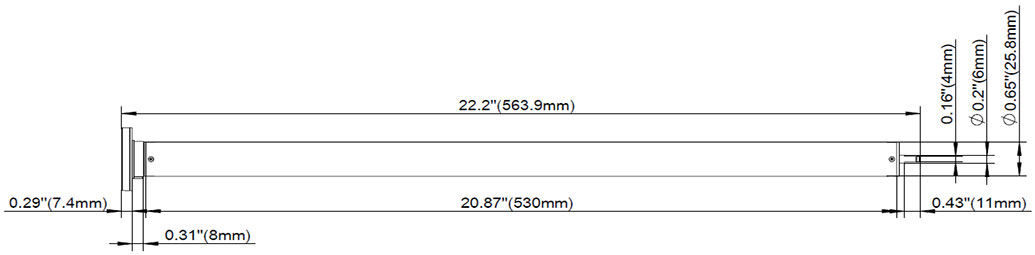

Dimension Drawing

*Click for larger drawings

Product
  • JCD25PLE
  • Ф25mm DC Tubular motor-Battery powered
Features
  • 1. Various torque for widely applicate
  • 2. Built-in rechargeable lithium battery
  • 3. Low standby power design, would operate 4~6 month when fully charged
  • 4. Powered by USB charging or solar panel
  • 5. Built-in RF433.92 wireless receiver, electronic limit

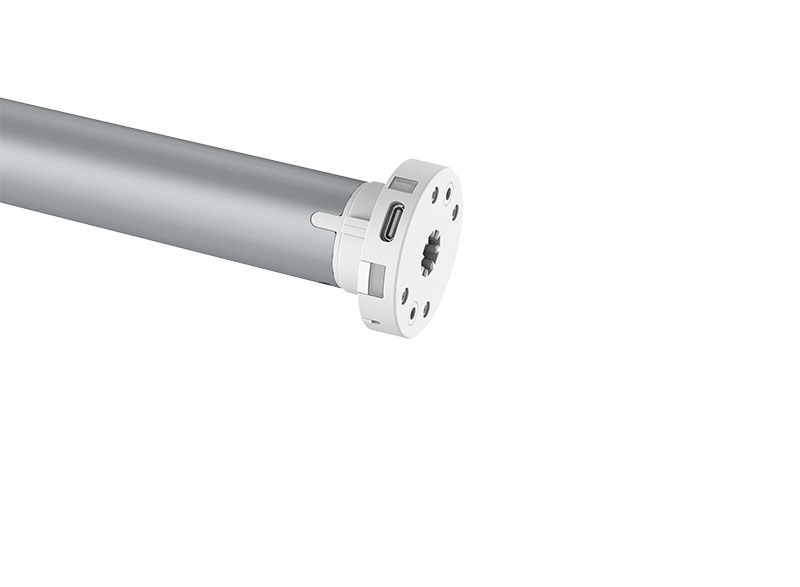

  • 6. Patented spring arm button design on motor head, good operating feeling
  • 7. Thinnest motor head design, minimize light transmission gap
  • 8. Patented silent motor design, running noise <32dB
  • 9. 3 speeds adjustable
  • 10. Stall Protection
  • 11. Easily set up/down limit, and favorite position
  • 12. Smart control with Smart Hub and Mini Bridge
  • 13. Compatible with leading brands of Home Automation Systems
Control
W1/W2/W3/W5 series Emitter
Power supply

Accessories(optional)

JCD-A-JH02

JCD-A-JH02

JCD-A-JL02

JCD-A-JL02

JCD-A-JH08

JCD-A-JH08

JCD-A-JL08

JCD-A-JL08

28 Round Tube

28 Round Tube

35 groove tube

35 groove tube

38 Groove tube

38 Groove tube

40 Octagonal tube

40 Octagonal tube

47 groove tube

47 groove tube

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=32dB

  • Easy installation

    The motor has a built-in rechargeable lithium battery, no wiring is required, and the installation can be completed within a few minutes, solving the problem of no power socket.

  • Environment friendly

    Solar panel is available, the system obtains the energy needed for operation from the sun, without requiring regularly charge the motor.

  • Sensitive control

    Control with remote within 30 meters which offers a comfortable and luxury experience without moving.
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCD25PLE-2020 2.0 20/24/28 12 1.6 18 433 Adapter 12V/1A & 5V/2A USB Charger &
Solar Panle 		0.61 564 IP20
JCD25PLEU-2020 0.7 25/30/35 5 0.8 9.6 433 USB Charger 5V/2A & Solar Panle 0.61 564 IP20
JCD25SLEU-0730 0.7 25/30/35 5 0.8 9.6 433 USB Charger 5V/2A  0.61 564 IP20
JCD25SLE-0730 0.7 25/30/35 5 0.8 9.6 433 Adapter 5V/2V & Solar Panle 0.61 564 IP20
JCD25SLEU-1130 1.1 25/30/35 5 1 12 433 USB Charger 5V/2A  0.62 564 IP20
JCD25SLE-1130 1.1 25/30/35 12 1 12 433 Adapter 12V/1V & Solar Panle  0.62 564 IP20
JCD25SLEU-1525 1.5 20/25/28 5 1.1 12 433 USB Charger 5V/2A  0.62 564 IP20
JCD25SLE-1525 1.5 20/25/28 12 1.1 12 433 Adapter 12V/1V & Solar Panle  0.62 564 IP20
Related Products
JCD15SLE-0330 0.3 25/30/35 5 0.6 5 433 USB Charger 5V/2A 0.17 350 IP20
JCD20SLEU 0.5 20/25/30 5 0.8 5 433 USB Charger 5V/2A 0.33 436 IP20/45
JCD28QLEU-2020 2 20/24/28 5 1.5 18 433 USB Charger 5V/2A 0.83 598 IP20
JCD30QLEU-2020 2 20/24/28 5 1.5 18 433 USB Charger 5V/2A 0.88 598 IP20
JCD35QLEU-6017 6 15/17/20 5 3.6 30 433 USB Charger 5V/2A 1.28 665 IP20
JCD15SLE-0330 0.3 25/30/35 8.4 0.6 5 433 Adapter8.4V/1A &
Solar Panle  		0.17 350 IP20
JCD28QLEU-2020 2 20/24/28 12 1.5 18 433 Adapter 12V/1A &
Solar Panle   		0.83 598 IP20
JCD30QLE-2020 2 20/24/28 12 1.5 18 433 Adapter 12V/1A &
Solar Panle   		0.88 598 IP20
JCD35QLE-6017 6 15/17/20 12 3.6 30 433 Adapter 12V/1A &
Solar Panle   		1.28 665 IP20
