DC Tubular Motor

JCD25-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

Indoor roller blinds

Indoor roller blinds

Shangri-La Blinds

Shangri-La Blinds

Roman Blinds

Roman Blinds

Aluminum Venetian blinds

Aluminum Venetian blinds

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

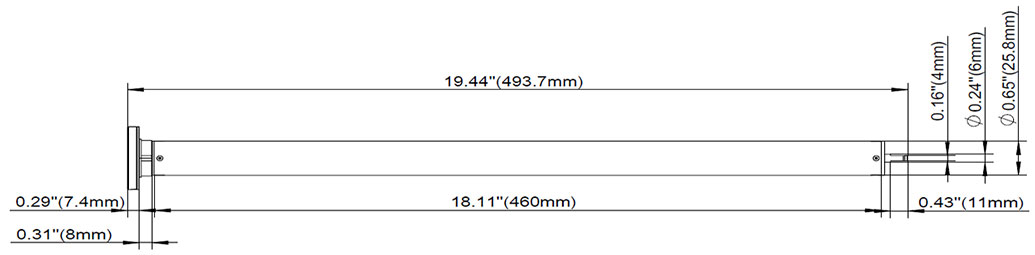

Dimension Drawing

*Click for larger drawings

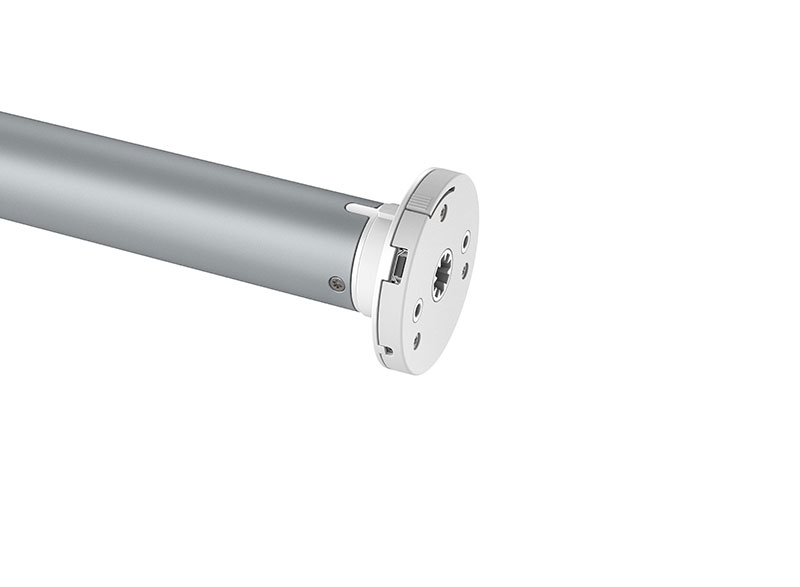

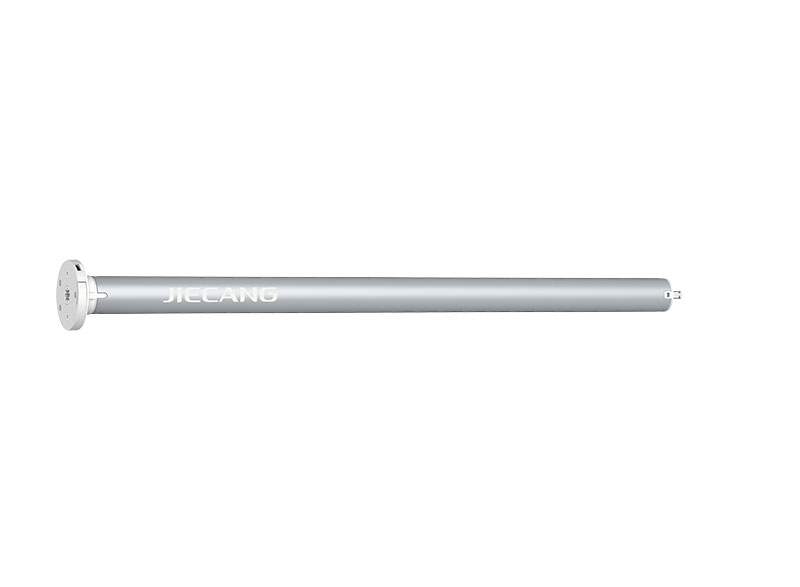

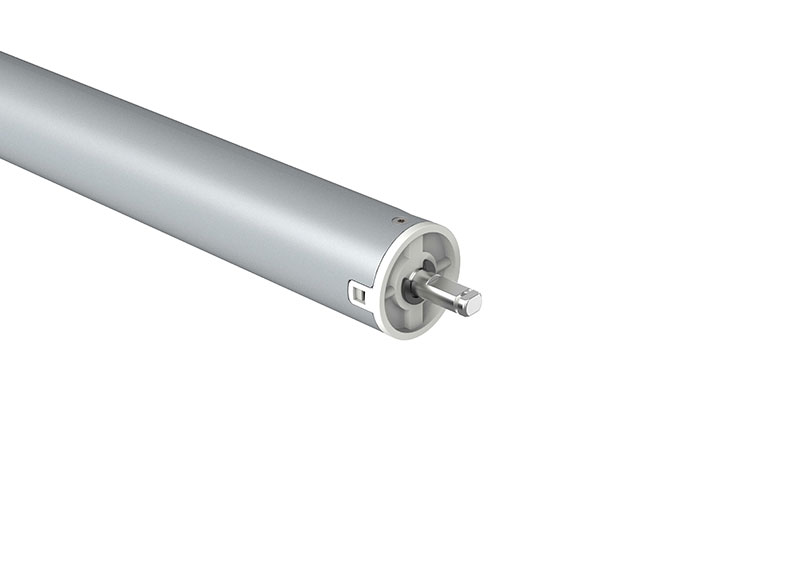

Product
  • JCD25PTE
  • Ф25mm DC Tubular Smart motor-external module
Features
  • 1. Various torque for widely applicate
  • 2. Extenal Zigbee/Wifi module, App and Smart speaker control
  • 3. Built-in transformer, AC input
  • 4. Built-in wireless receiver, electronic limit
  • 5. Patented spring arm button design on motor head
  • 6. Thinnest motor head design, minimize light transmission gap
  • 7. Patented silent motor design, running noise <32dB
  • 8. 3 speeds adjustable
  • 9. Stall Protection
  • 10. Easily set up/down limit, and favorite position
Control
1.W1/W2/W3/W5 series Emitter
2.App
3.Smart speaker
Power supply

Accessories(optional)

28 Round Tube

28 Round Tube

35 Groove tube

35 Groove tube

38 Groove tube

38 Groove tube

40 Octagonal tube

40 Octagonal tube

47 Groove tube

47 Groove tube

JCD-A-JH02

JCD-A-JH02

JCD-A-JH08

JCD-A-JH08

JCD-A-JL02

JCD-A-JL02

JCD-A-JL08

JCD-A-JL08

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=32dB

  • Sensitive control

    Control with remote within 30 meters which offers a comfortable and luxury experience without moving

  • Flush management

    Precise percentage control, perfect alignment between roller blinds during up/down running
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCD25PTE-2020 2.0 20/24/28 12 0.18 18 433+External WiFi/Zigbee AC100-240  0.5 494 IP20
JCD25PTEW-2020 2.0 20/24/28 12 0.18 18 433+built-in WiFi AC100-240  0.5 494 IP20
JCD25PTEZ-2020 2.0 20/24/28 12 0.18 18 433+built-in Zigbee AC100-240  0.5 494 IP20
Related Products
JCD25STE-0730 0.7 25/30/35 12 0.8 9.6 433+External WiFi/Zigbee AC100-240 0.5 494 IP20
JCD25STEW-0730 0.7 25/30/35 12 0.8 9.6 433+built-in WiFi AC100-240 0.5 494 IP20
JCD25STEZ-0730 0.7 25/30/35 12 0.8 9.6 433+built-in Zigbee AC100-240 0.5 494 IP20
JCD25STE-1130 1.1 25/30/35 12 1 12 433+Externa WiFi/Zigbee AC100-240 0.5 494 IP20
JCD25STEW-1130 1.1 25/30/35 12 1 12 433+built-in WiFi AC100-240 0.5 494 IP20
JCD25STEZ-1130 1.1 25/30/35 12 1 12 433+built-in Zigbee AC100-240 0.5 494 IP20
JCD25STE-1525 1.5 20/25/28 12 1.1 12 433+Externa WiFi/Zigbee AC100-240 0.5 494 IP20
JCD25STEW-1525 1.5 20/25/28 12 1.1 12 433+built-in WiFi AC100-240 0.5 494 IP20
JCD25STEZ-1525 1.5 20/25/28 12 1.1 12 433+built-in Zigbee AC100-240 0.5 494 IP20
