JCD15-Series

Certification

Application

Indoor roller blinds

RV Sunshade

Outdoor Projection Screen

Sheer Blinds

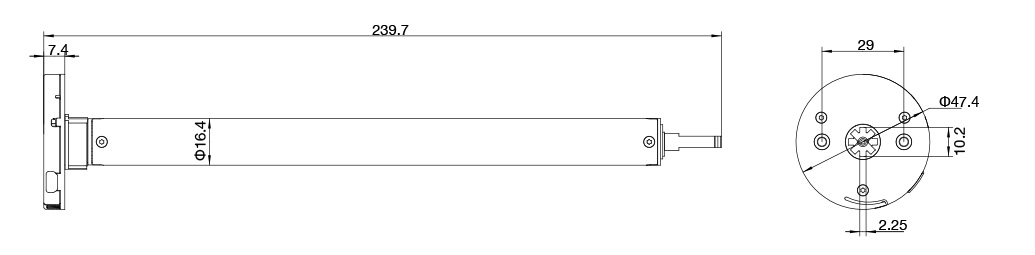

Dimension Drawing

*Click for larger drawings

Product

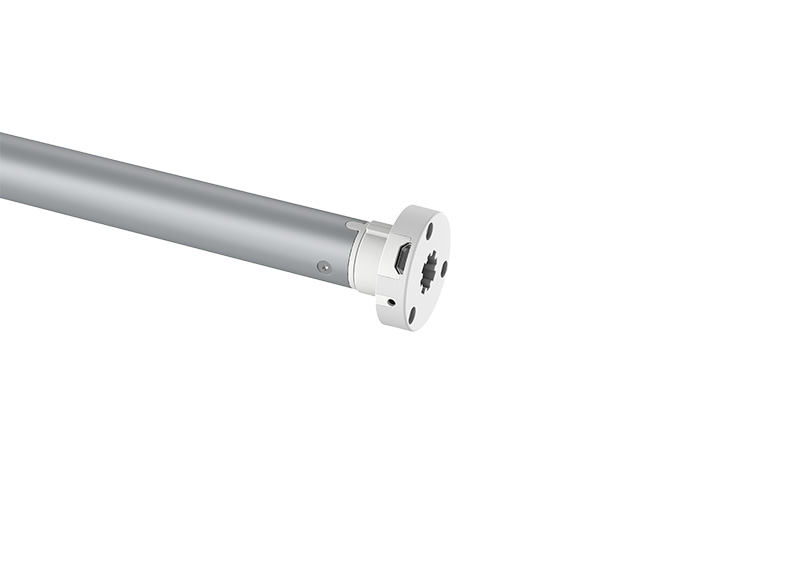

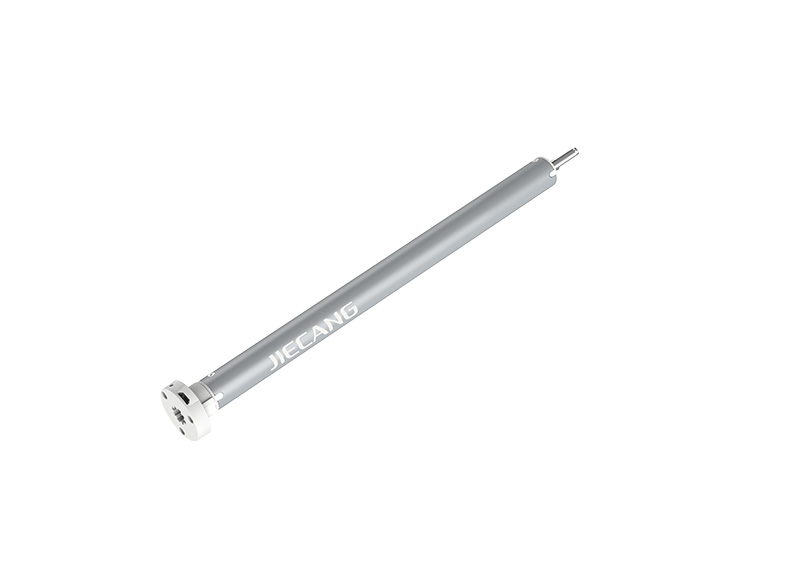

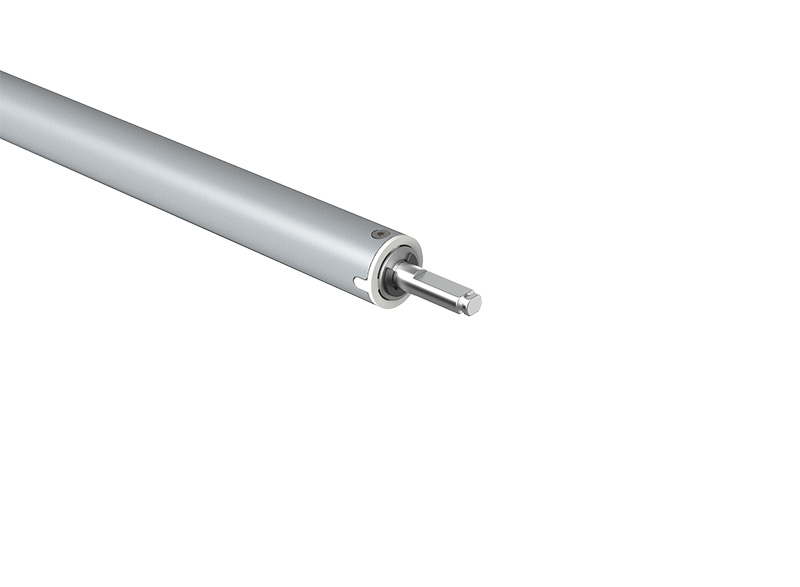

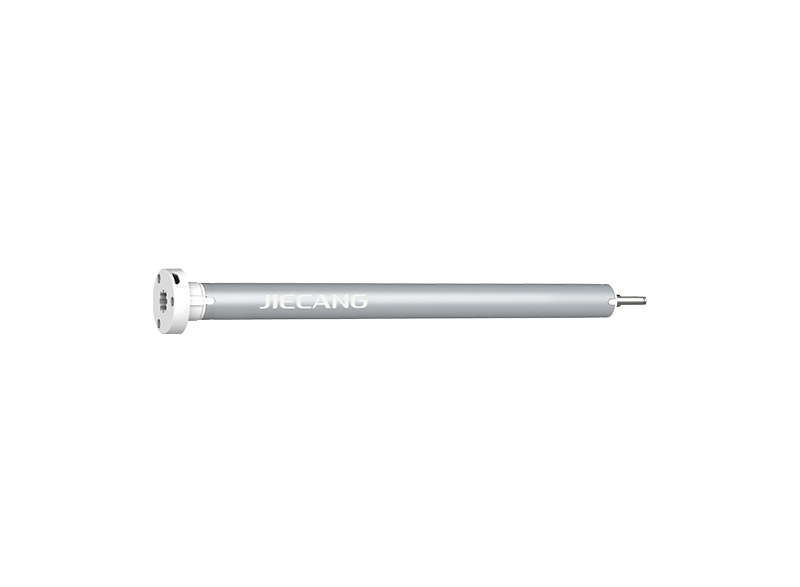

JCD15SAE
Ф16mm DC Smart roller motor-external communication module

Features

1. Designed for small windows
2. With Extenal Wifi/Zigbee modules, would control motor by Apps on smartphone or Smart speakers, e.g. Alexa;
3. Extenal power adapter, shortest motor length
4. Built-in wireless receiver, electronic limit
5. Patented spring arm button design on motor head
6. Thinnest motor head design, minimize light transmission gap
7. Patented silent motor design, running noise <31dB
8. 3 speeds adjustable
9. Stall Protection
10. Easily set up/down limit, and favorite position

Control

1.W1/W2/W3/W5 series Emitter

2.App

3.Smart speaker

Power supply

Accessories(optional)

20 round tube
Rated load: 3kgs

28 slotted tube
Rated load: 2.1kgs

Product Features

Silent technology

The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB
Intelligent control

External WiFi or Zigbee module can be connected to achieve a variety of intelligent control methods (mobile app and voice control), and can be easily integrated with home automation systems
Flush management

Precise percentage control, perfect alignment between roller blinds during up/down running;

More Details

Data Download

User Manual

Product Parameter

Model	Rated torque(N.m)	Output speed(rpm)	Rated voltage(V)	Rated current(A)	Rated power(W)	Frequency(MHz)	Power supply(V/A)	Weight(kg)	Length(mm)	IP degree
JCD15SAE-0330	0.3	25/30/35	8.4	0.6	5	433+ External WiFi/Zigbee	Adapter 8.4V/1A	0.11	240	IP20
JCD15SLEU-0330	0.3	25/30/35	5	0.6	5	433	USB Charger 5V/2A	0.17	350	IP20
JCD15SLE-0330	0.3	25/30/35	8.4	0.6	5	433	Adapter 8.4V/1A & Solar Panel	0.17	350	IP20
Related Products
JCD25SAE-0730	0.7	25/30/35	12	0.8	9.6	433+ External WiFi/Zigbee	Adapter 12V/2A	0.61	564	IP20
JCD25SAEW-0730	0.7	25/30/35	12	0.8	9.6	433+ built-in WiFi	Adapter 12V/2A	0.61	564	IP20
JCD25SAEZ-0730	0.7	25/30/35	12	0.8	9.6	433+ built-in Zigbee	Adapter 12V/2A	0.61	564	IP20
JCD25SAE-1130	1.1	25/30/35	12	1	12	433+ External WiFi/Zigbee	Adapter 12V/2A	0.62	564	IP20
JCD25SAEW-1130	1.1	25/30/35	12	1	12	433+ built-in WiFi	Adapter 12V/2A	0.62	564	IP20
JCD25SAEZ-1130	1.1	25/30/35	12	1	12	433+ built-in Zigbee	Adapter 12V/2A	0.62	564	IP20
JCD25SAE-1525	1.5	20/25/28	12	1.1	12	433+ External WiFi/Zigbee	Adapter 12V/2A	0.62	564	IP20
JCD25SAEW-1525	1.5	20/25/28	12	1.1	12	433+ built-in WiFi	Adapter 12V/2A	0.62	564	IP20
JCD25SAEZ-1525	1.5	20/25/28	12	1.1	12	433+ built-in Zigbee	Adapter 12V/2A	0.62	564	IP20
JCD28QAE-2020	2	20/24/28	12	1.5	18	433+ External WiFi/Zigbee	Adapter 12V/4A	0.83	598	IP20
JCD28QAEW-2020	2	20/24/28	12	1.5	18	433+ built-in WiFi	Adapter 12V/4A	0.83	598	IP20
JCD28QAEZ-2020	2	20/24/28	12	1.5	18	433+ built-in Zigbee	Adapter 12V/4A	0.83	598	IP20
JCD30QAE-2020	2	20/24/28	12	1.5	18	433+ External WiFi/Zigbee	Adapter 12V/4A	0.88	598	IP20
JCD30QAEW-2020	2	20/24/28	12	1.5	18	433+ built-in WiFi	Adapter 12V/4A	0.88	598	IP20
JCD30QAEZ-2020	2	20/24/28	12	1.5	18	433+ built-in Zigbee	Adapter 12V/4A	0.88	598	IP20
