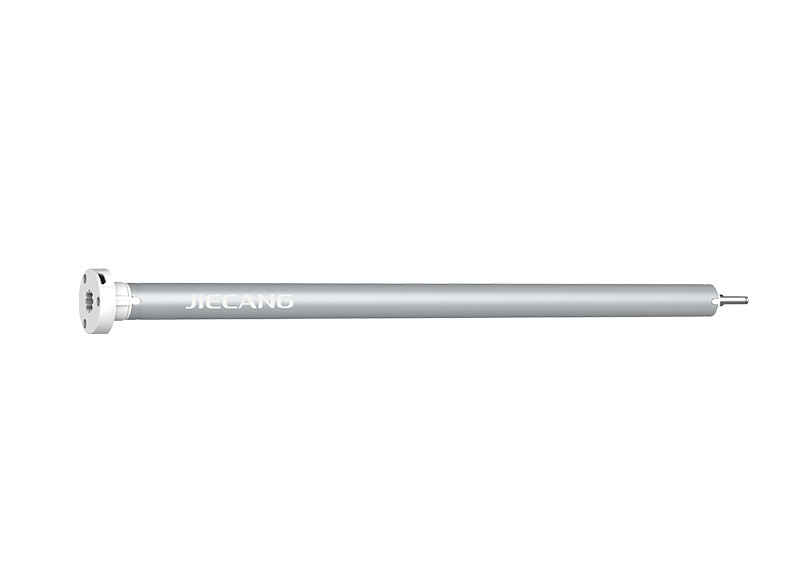

JCD15SLEU - JCD15-Series - Zhejiang Jiecang Linear Motion Technology Co. Ltd.

JCD15-Series

Certification

Application

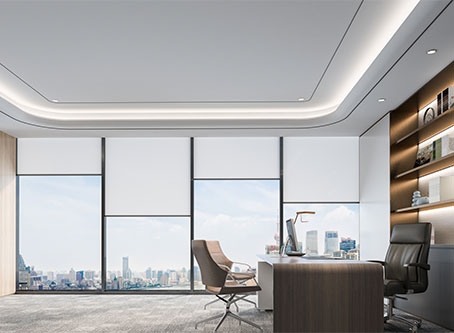

Indoor roller blinds

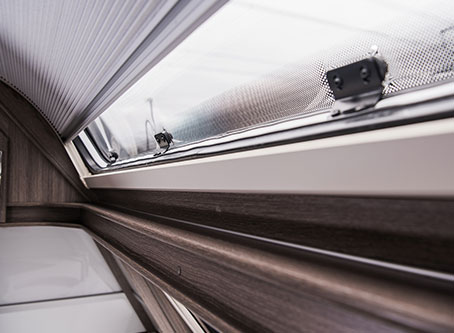

RV Sunshade

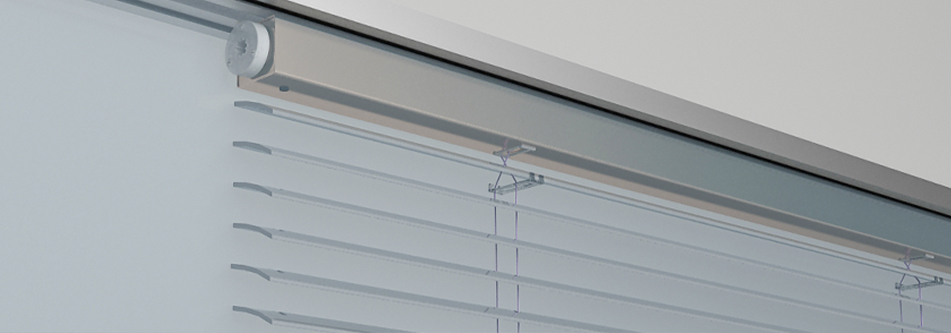

Sheer Blinds

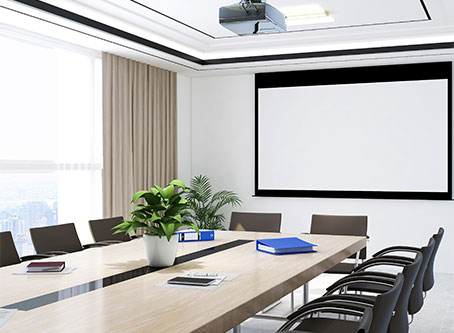

Projection screen

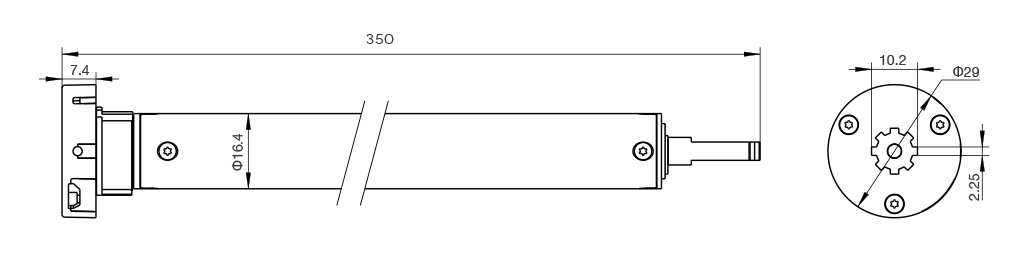

Dimension Drawing

*Click for larger drawings

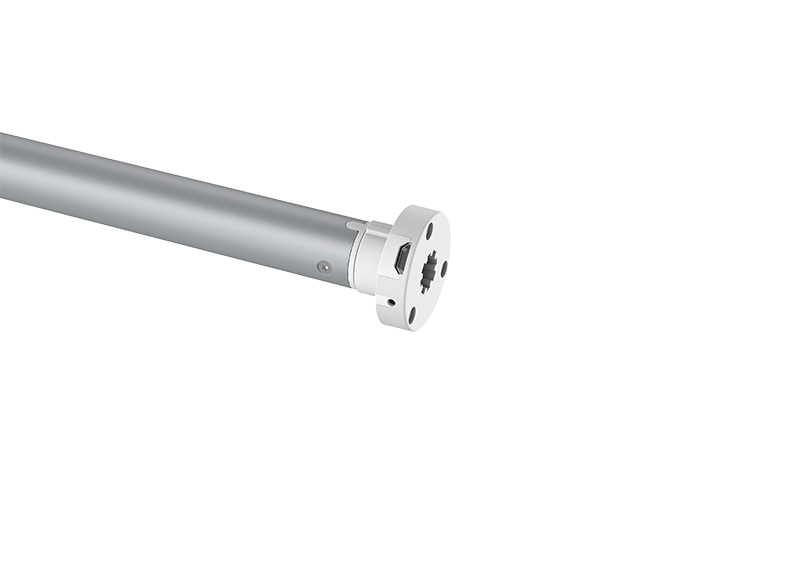

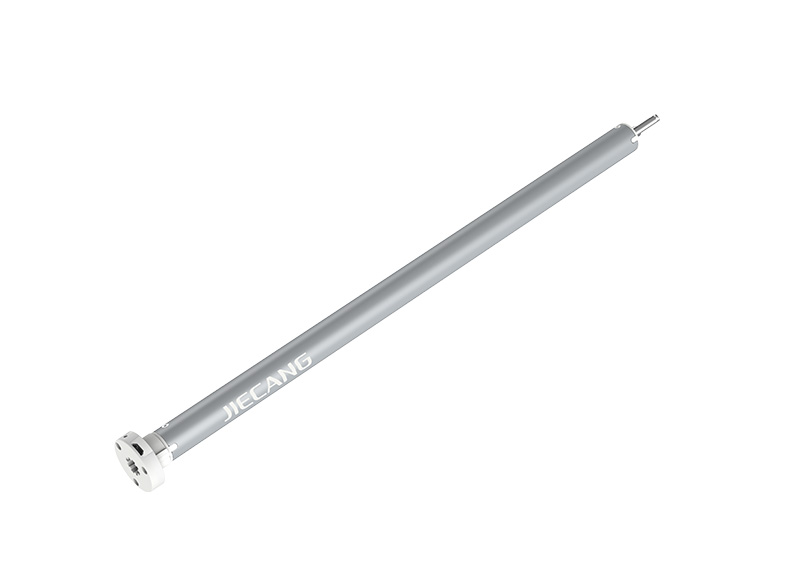

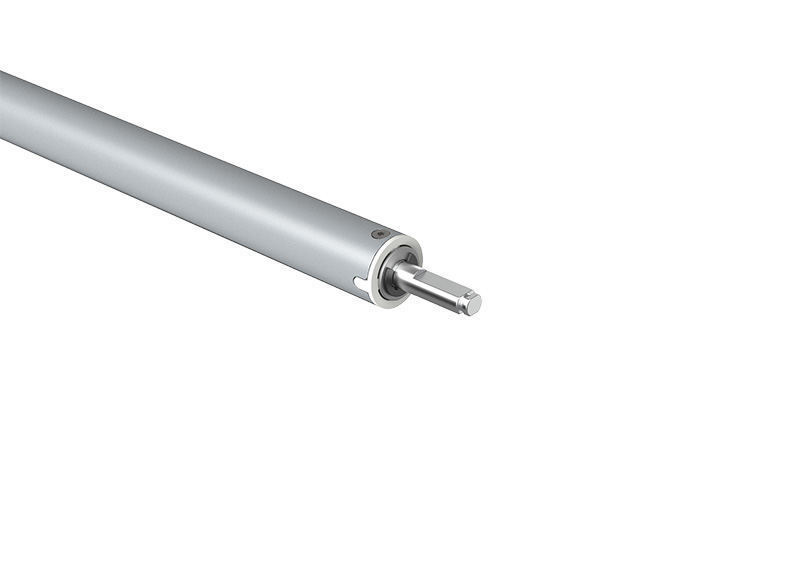

Product

Features

1. Designed for small windows
2. Built-in rechargeable lithium battery, no power wiring required
3. Low standby power consumption design, can operate 4~6 months when fully charged
4. Micro USB port charging
5. Built-in wireless receiver, electronic limit
6. Patented spring arm button design on motor head
7. Thinnest motor head design, minimize light transmission gap
8. Patented silent motor design, running noise <31dB
9. 3 speeds adjustable
10. Stall Protection
11. Easily set up/down limit, and favorite position

Control

W1/W2/W3/W5 series Emitter

Power supply

Accessories(optional)

Product Features

Silent technology

The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB
Easy installation

The motor has a built-in rechargeable lithium battery, no wiring is required, and the installation can be completed within a few minutes, solving the problem of no power socket.
Flexible application

The motor pipe diameter is only 16mm, which provides a perfect solution for small curtains such as mini windows and RV sunshades.

More Details

Data Download

Product Parameter

Application
