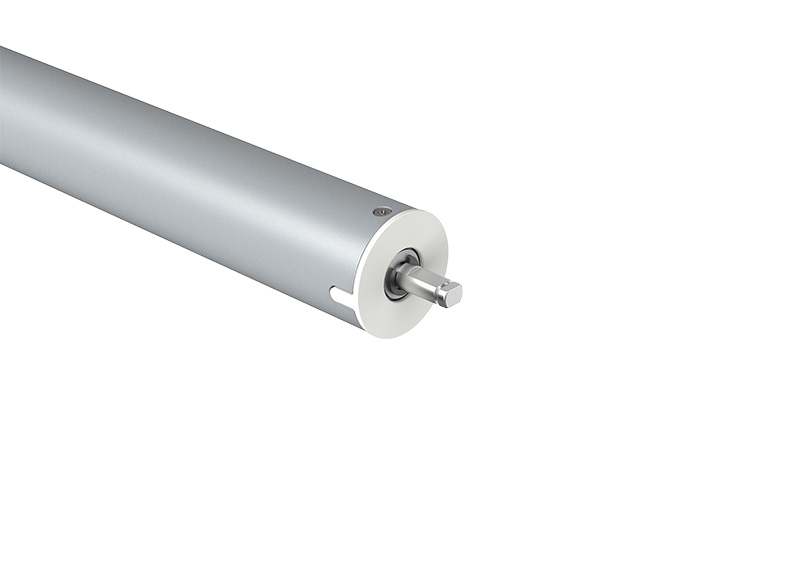

DC Tubular Motor

JCD30-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

Indoor roller blinds

Indoor roller blinds

Shangri-La Blinds

Shangri-La Blinds

Roman Blinds

Roman Blinds

Aluminum Venetian blinds

Aluminum Venetian blinds

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

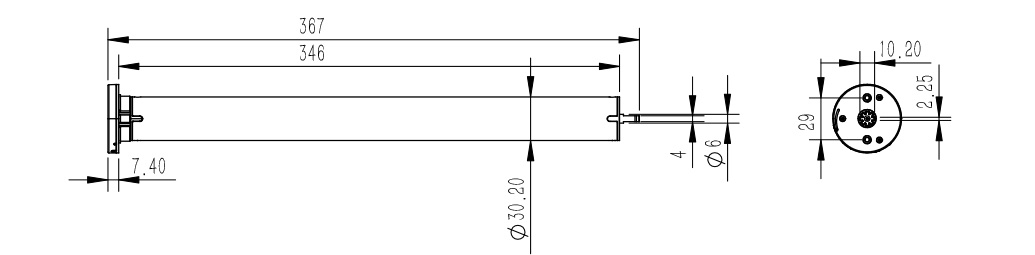

Dimension Drawing

*Click for larger drawings

Product

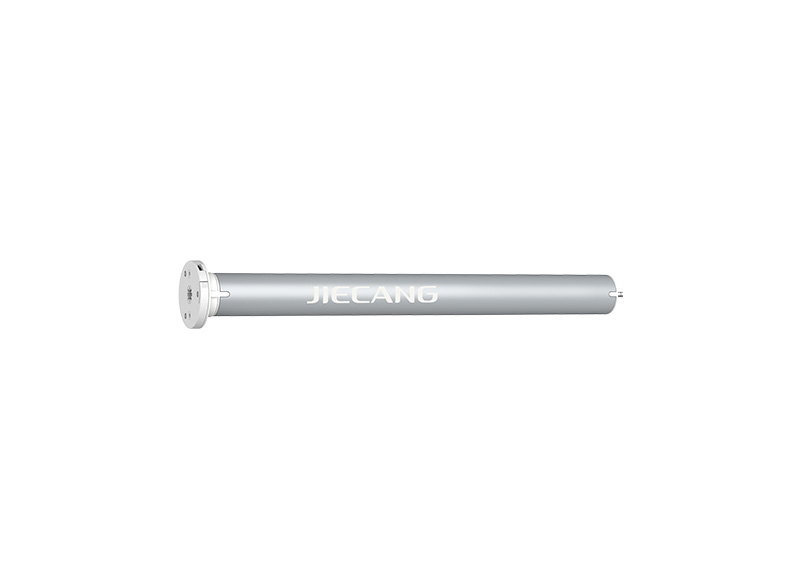

  • JCD30QAE
  • Ф30mm DC Tubular intelligent motor-external communication module
Features
  • 1. Built-in Zigbee module, App and Smart speaker control
  • 2. Extenal adapter, short motor length
  • 3. Built-in wireless receiver, electronic limit

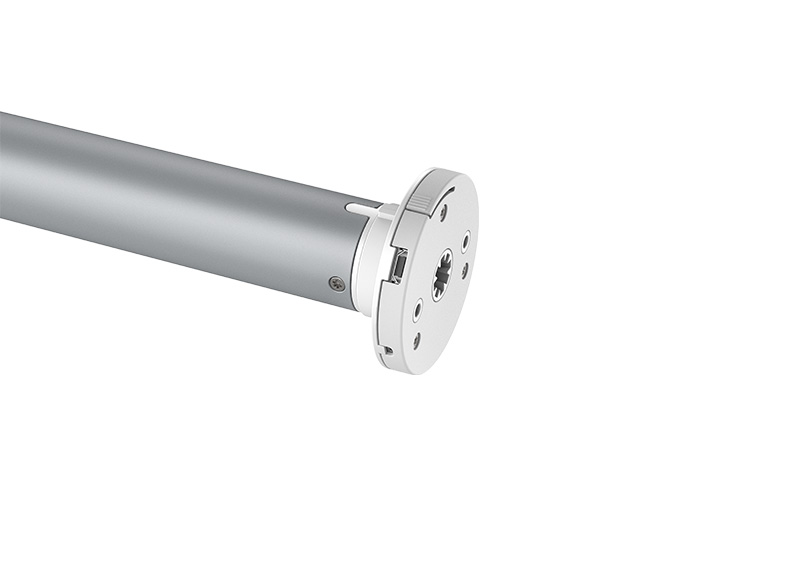

  • 4. Patented spring arm button design on motor head
  • 5. Thinnest motor head design, minimize light transmission gap
  • 6. Patented silent motor design, running noise <31dB
  • 7. 3 speeds adjustable
  • 8. Stall Protection.
  • 9. Easily set up/down limit, and favorite position


Control
W1/W2/W3/W5 series Emitter
Power supply

Accessories(optional)

JCD-A-JH11

JCD-A-JH11

JCD-A-JL10

JCD-A-JL10

JCD-A-JH12

JCD-A-JH12

JCD-A-JL11

JCD-A-JL11

40mm octagonal tube

40mm octagonal tube

47mm tube

47mm tube

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

  • Intelligent control

    Built-in Zigbee module to achieve a variety of intelligent control methods (mobile app and voice control) and easy integration with home automation systems

  • Flush management

    Precise percentage control, perfect alignment between roller blinds during up/down running;
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCD30QAE-2020 2 20/24/28 12 1.5 18 433+ External WiFi/Zigbee Adapter 12V/4A 0.88 598 IP20
JCD30QAEW-2020 2 20/24/28 12 1.5 18 433+ built-in WiFi Adapter 12V/4A 0.88 598 IP20
JCD30QAEZ-2020 2 20/24/28 12 1.5 18 433+ built-in Zigbee Adapter 12V/4A 0.88 598 IP20
