DC Tubular Motor

JCD30-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

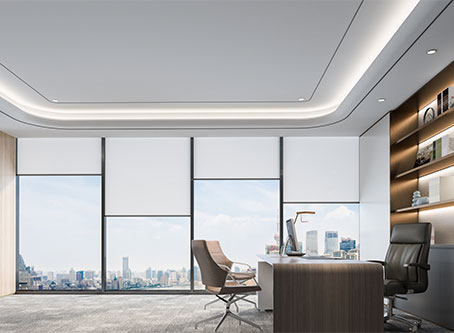

Indoor roller blinds

Indoor roller blinds

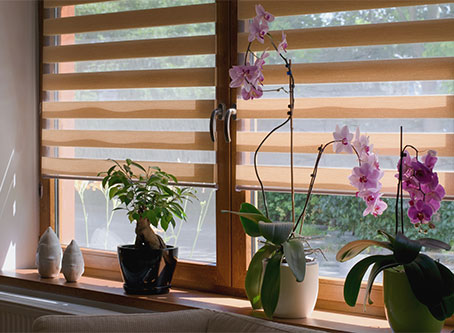

Shangri-La Blinds

Shangri-La Blinds

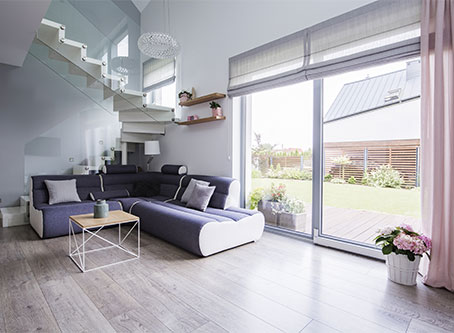

Roman Blinds

Roman Blinds

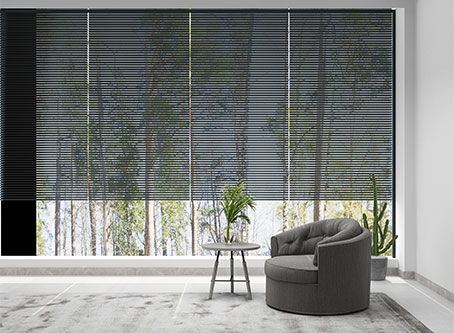

Aluminum Venetian blinds

Aluminum Venetian blinds

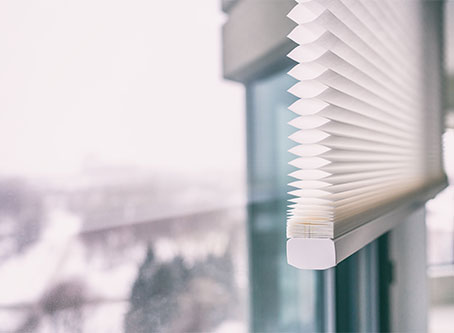

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

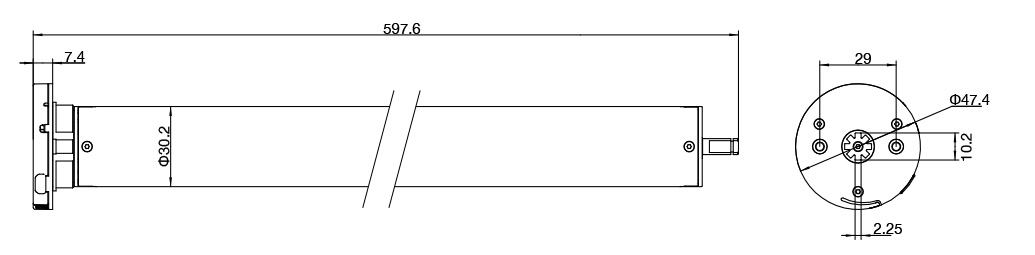

Dimension Drawing

*Click for larger drawings

Product

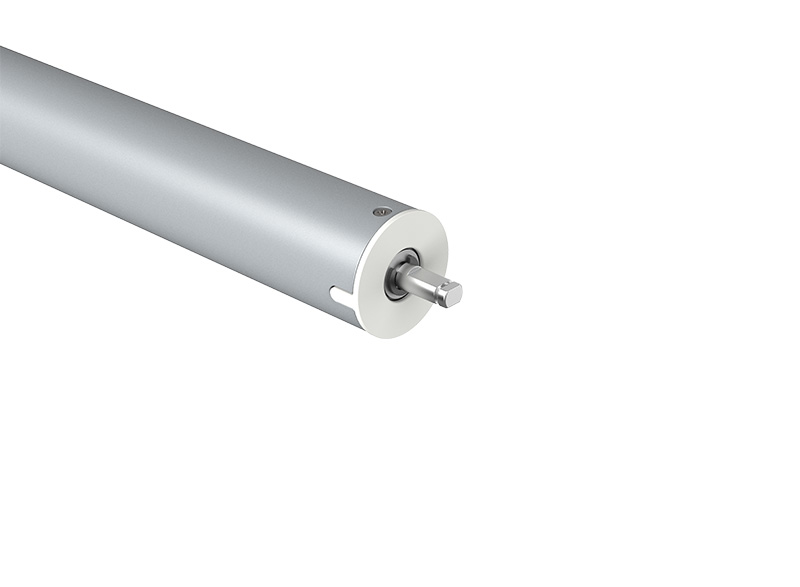

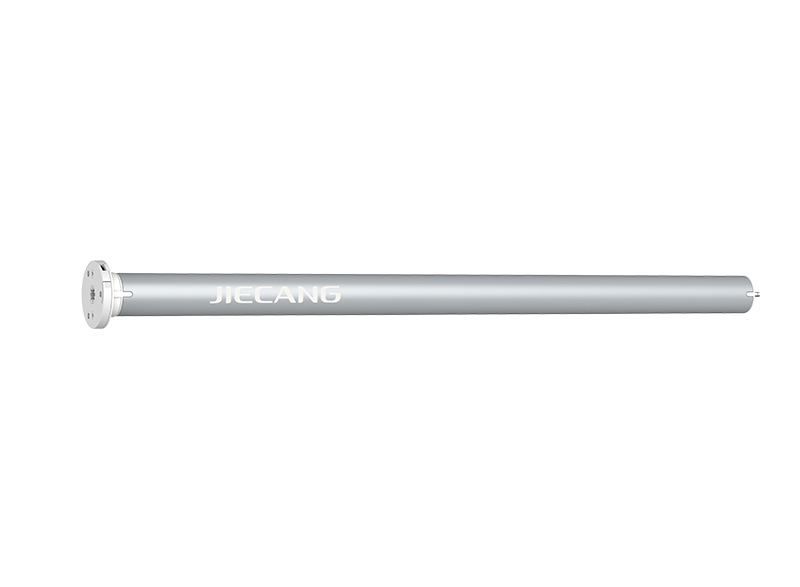

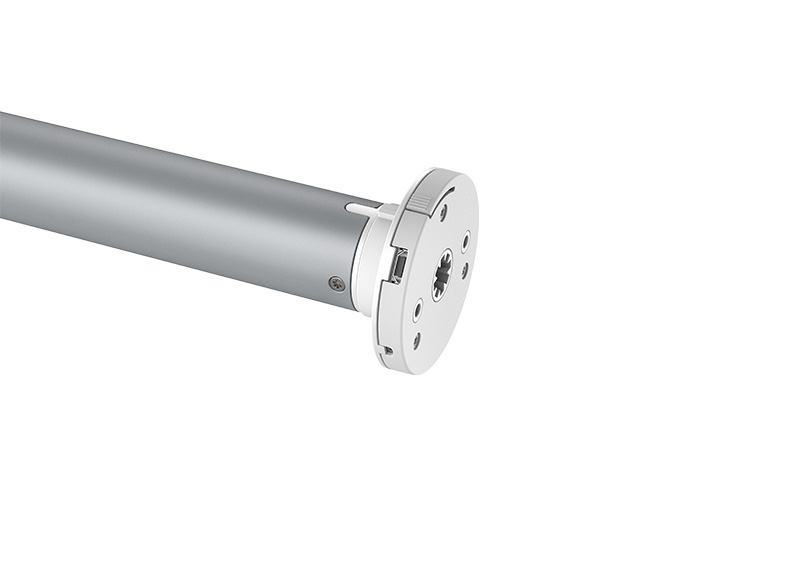

  • JCD30QLEU
  • Ф30mm DC Tubular motor -Battery Powered
Features
  • 1. Various torque for widely applicate
  • 2. Built-in battery powered
  • 3. Low standby power design, would operate 4~6 month when fully charged;
  • 4. Powered by adapter or solar panel;
  • 5. Built-in wireless receiver, electronic limit
  • 6. Patented spring arm button design on motor head, good operating feeling
  • 7. Thinnest motor head design, minimize light transmission gap
  • 8. Patented silent motor design, running noise <31dB
  • 9. 3 speeds adjustable
  • 10. Stall Protection
  • 11. Easily set up/down limit, and favorite position
Control
W1/W2/W3/W5 series Emitter
Power supply

Accessories(optional)

JCD-A-JH11

JCD-A-JH11

JCD-A-JL10

JCD-A-JL10

JCD-A-JH12

JCD-A-JH12

JCD-A-JL11

JCD-A-JL11

40mm octagonal tube

40mm octagonal tube

47mm tube

47mm tube

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

  • Easy installation

    The motor has a built-in rechargeable lithium battery, no wiring is required, and the installation can be completed within a few minutes, solving the problem of no power socket.

  • Flush management

    Precise percentage control, perfect alignment between roller blinds during up/down running;
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCD30QLEU-2020 2 20/24/28 5 1.5 18 433 USB Charger 5V/2A  0.88 598 IP20
JCD30QLE-2020 2 20/24/28 12 1.5 18 433 Adapter 12V/1A &
Solar Panel 		0.88 598 IP20
Related Products
JCD15SLEU-0330 0.3 25/30/35 5 0.6 5 433 USB Charger 5V/2A  0.17 350 IP20
JCD25SLEU-0730 0.7 25/30/35 5 0.8 9.6 433 USB Charger 5V/2A  0.61 564 IP20
JCD25SLEU-1130 1.1 25/30/35 5 1 12 433 USB Charger 5V/2A  0.62 564 IP20
JCD25SLEU-1525 1.5 20/25/28 5 1.1 12 433 USB Charger 5V/2A  0.62 564 IP20
JCD28QLEU-2020 2 20/24/28 5 1.5 18 433 USB Charger 5V/2A  0.83 598 IP20
JCD35QLEU-6017 6 15/17/20 5 3.6 30 433 USB Charger 5V/2A  1.28 665 IP20
JCD15SLE-0330 0.3 25/30/35 8.4 0.6 5 433 Adapter 8.4V/1A &
Solar Panel 		0.17 350 IP20
JCD25SLE-0730 0.7 25/30/35 12 0.8 9.6 433 Adapter 12V/1A &
Solar Panel 		0.61 564 IP20
JCD25SLE-1130 1.1 25/30/35 12 1 12 433 Adapter 12V/1A &
Solar Panel 		0.62 564 IP20
JCD25SLE-1525 1.5 20/25/28 12 1.1 12 433 Adapter 12V/1A &
Solar Panel 		0.62 564 IP20
JCD28QLE-2020 2 20/24/28 12 1.5 18 433 Adapter 12V/1A &
Solar Panel 		0.83 598 IP20
JCD35QLE-6017 6 15/17/20 12 3.6 30 433 Adapter 12V/1A &
Solar Panel 		1.28 665 IP20
