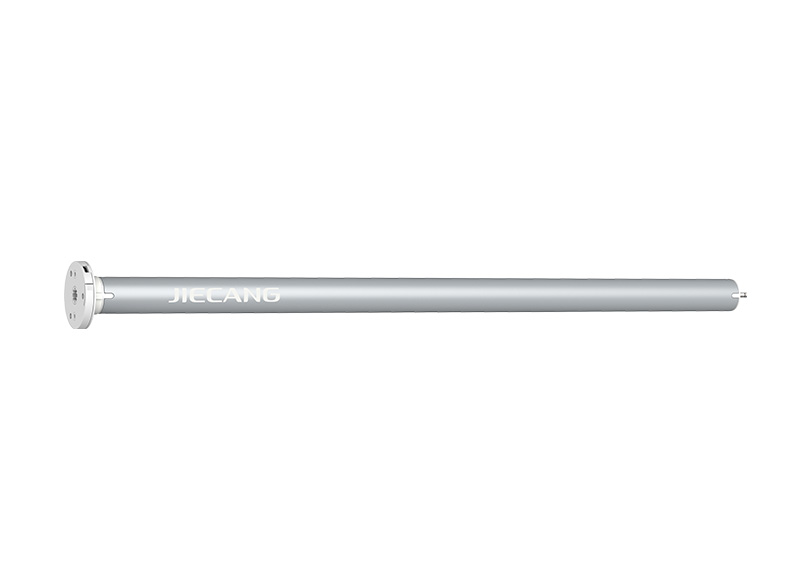

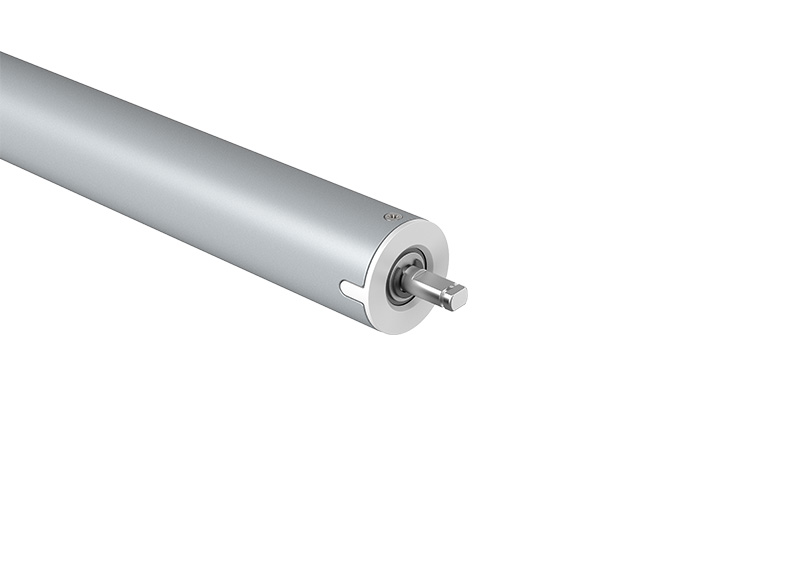

DC Tubular Motor

JCD25-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

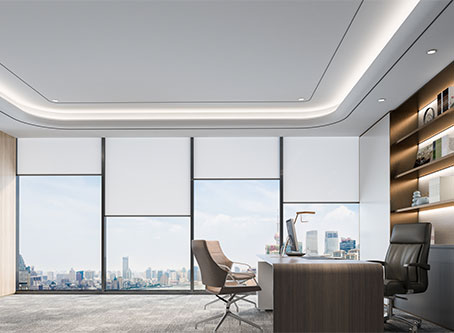

Indoor roller blinds

Indoor roller blinds

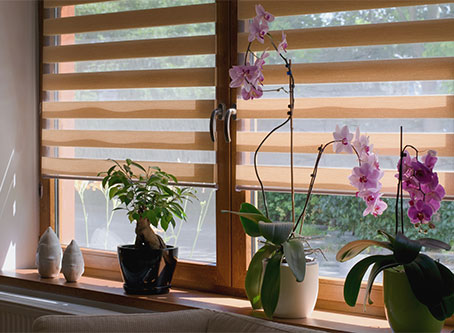

Shangri-La Blinds

Shangri-La Blinds

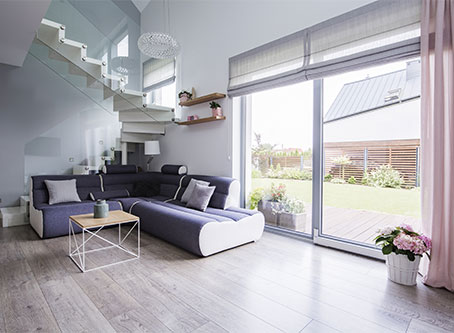

Roman Blinds

Roman Blinds

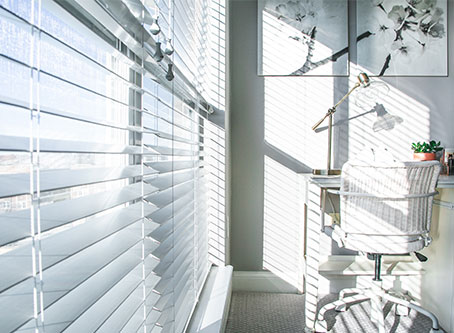

Aluminum Venetian blinds

Aluminum Venetian blinds

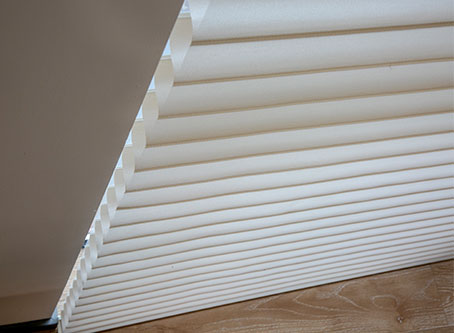

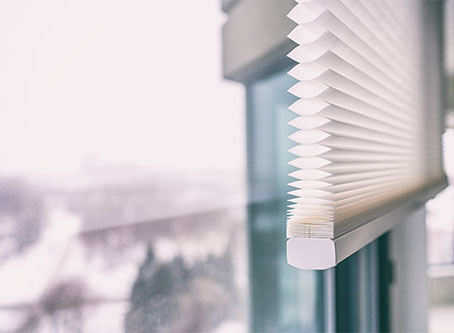

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

Dimension Drawing

*Click for larger drawings

Product
  • JCD25SLEZ
  • Ф25mm DC Tubular motor-Built-in lithium battery/Zigbee
Features
  • 1. Various torque for widely applicate
  • 2. Extenal Zigbee/Wifi module, App and Smart speaker control
  • 3. Built-in battery powered
  • 4. Low standby power design, would operate 4~6 month when fully charged;
  • 5. Powered by adapter or solar panel;
  • 6. Built-in wireless receiver, electronic limit

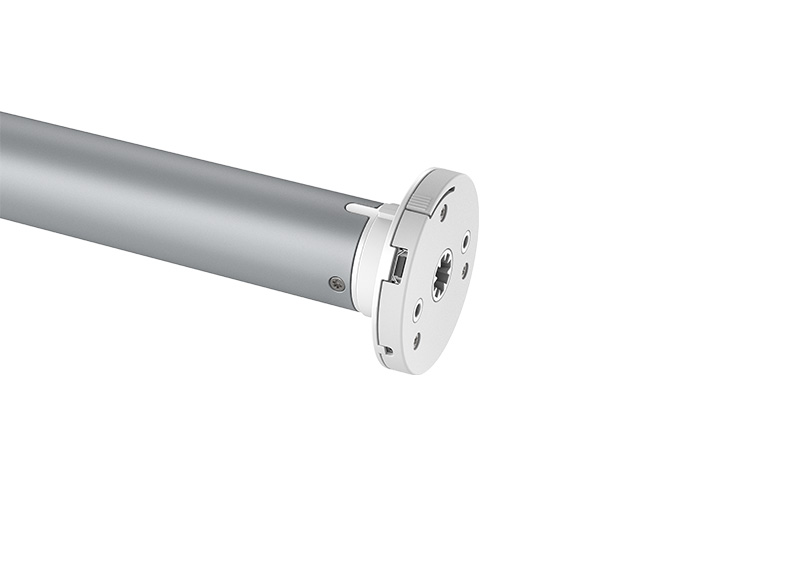

  • 7. Patented spring arm button design on motor head, good operating feeling
  • 8. Thinnest motor head design, minimize light transmission gap
  • 9. Patented silent motor design, running noise <31dB
  • 10. 3 speeds adjustable
  • 11. Stall Protection
  • 12. Easily set up/down limit, and favorite position
Control
1.W1/W2/W3/W5 series Emitter
2.App
3.Smart speaker
Power supply

Accessories(optional)

JCD-A-JH07

JCD-A-JH07

JCD-A-JL07

JCD-A-JL07

JCD-A-JH08

JCD-A-JH08

JCD-A-JH06

JCD-A-JH06

JCD-A-JL08

JCD-A-JL08

JCD-A-JL06

JCD-A-JL06

JCD-A-JH02

JCD-A-JH02

JCD-A-JH16

JCD-A-JH16

JCD-A-JL02

JCD-A-JL02

JCD-A-JL14

JCD-A-JL14

JCD-A-JH09

JCD-A-JH09

JCD-A-JL09

JCD-A-JL09

28 Round Tube

28 Round Tube

38 groove tube

38 groove tube

40 Slotted curved edge pipe

40 Slotted curved edge pipe

40 straight groove tube

40 straight groove tube

Product Features

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

  • Easy installation

    The motor has a built-in rechargeable lithium battery, no wiring is required, and the installation can be completed within a few minutes, solving the problem of no power socket.

  • Intelligent control

    Built-in Zigbee module to achieve a variety of intelligent control methods (mobile app and voice control) and easy integration with home automation systems
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCD25SLEZ-0730 0.7 25/30/35 12 0.8 9.6 433+Zigbee Adapter 12V/1A &
Solar Panel 		0.61 564 IP20
JCD25SLE-0730 0.7 25/30/35 12 0.8 9.6 433 Adapter 12V/1A &
Solar Panel 		0.61 564 IP20
JCD25SLEU-0730 0.7 25/30/35 5 0.8 9.6 433 USB Charger 5V/2A  0.61 564 IP20
JCD25SLEZ-1130 1.1 25/30/35 12 1 12 433+Zigbee Adapter 12V/1A &
Solar Panel 		0.62 564 IP20
JCD25SLE-1130 1.1 25/30/35 12 1 12 433 Adapter 12V/1A &
Solar Panel 		0.62 564 IP20
JCD25SLEU-1130 1.1 25/30/35 5 1 12 433 USB Charger 5V/2A  0.62 564 IP20
JCD25SLEZ-1525 1.5 20/25/28 12 1.1 12 433+Zigbee Adapter 12V/1A &
Solar Panel 		0.62 564 IP20
JCD25SLE-1525 1.5 20/25/28 12 1.1 12 433 Adapter 12V/1A &
Solar Panel 		0.62 564 IP20
JCD25SLEU-1525 1.5 20/25/28 5 1.1 12 433 USB Charger 5V/2A  0.62 564 IP20
Related Products
JCD15SLE-0330 0.3 25/30/35 8.4 0.6 5 433 Adapter 8.4V/1A &
Solar Panel 		0.17 350 IP20
JCD28QLE-2020 2 20/24/28 12 1.5 18 433 Adapter 12V/1A &
Solar Panel 		0.83 598 IP20
JCD30QLE-2020 2 20/24/28 12 1.5 18 433 Adapter 12V/1A &
Solar Panel 		0.88 598 IP20
JCD35QLE-6017 6 15/17/20 12 3.6 30 433 Adapter 12V/1A &
Solar Panel 		1.28 665 IP20
JCD15SLEU-0330 0.3 25/30/35 5 0.6 5 433 USB Charger 5V/2A  0.17 350 IP20
JCD28QLEU-2020 2 20/24/28 5 1.5 18 433 USB Charger 5V/2A  0.83 598 IP20
JCD30QLEU-2020 2 20/24/28 5 1.5 18 433 USB Charger 5V/2A  0.88 598 IP20
JCD35QLEU-6017 6 15/17/20 5 3.6 30 433 USB Charger 5V/2A  1.28 665 IP20
