DC Tubular Motor

JCD25-Series

Certification

Application

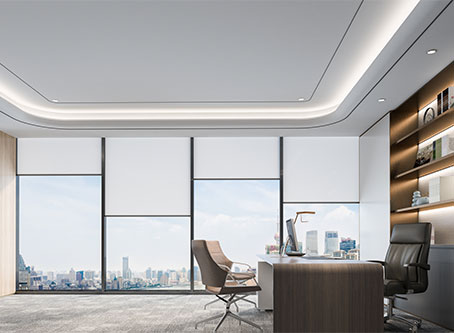

Indoor roller blinds

Indoor roller blinds

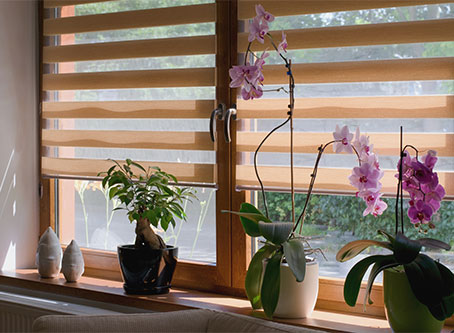

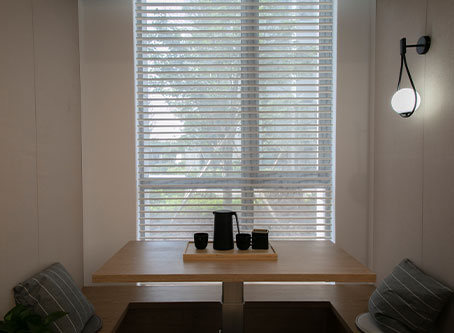

Shangri-La Blinds

Shangri-La Blinds

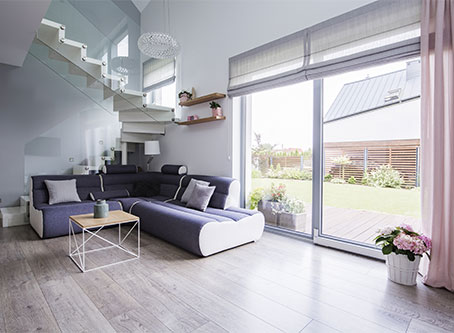

Roman Blinds

Roman Blinds

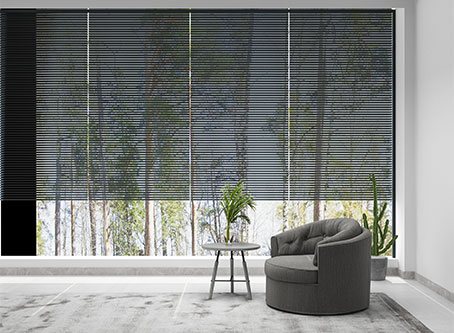

Aluminum Venetian blinds

Aluminum Venetian blinds

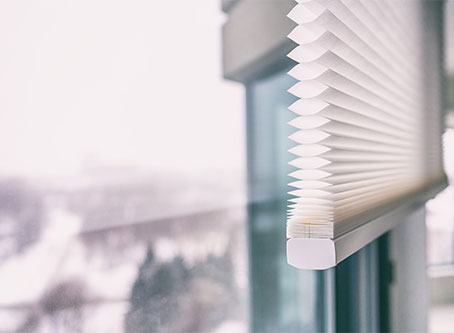

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

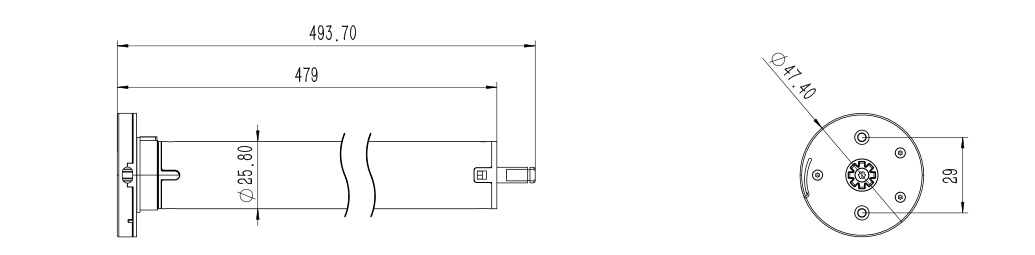

Dimension Drawing

*Click for larger drawings

Product

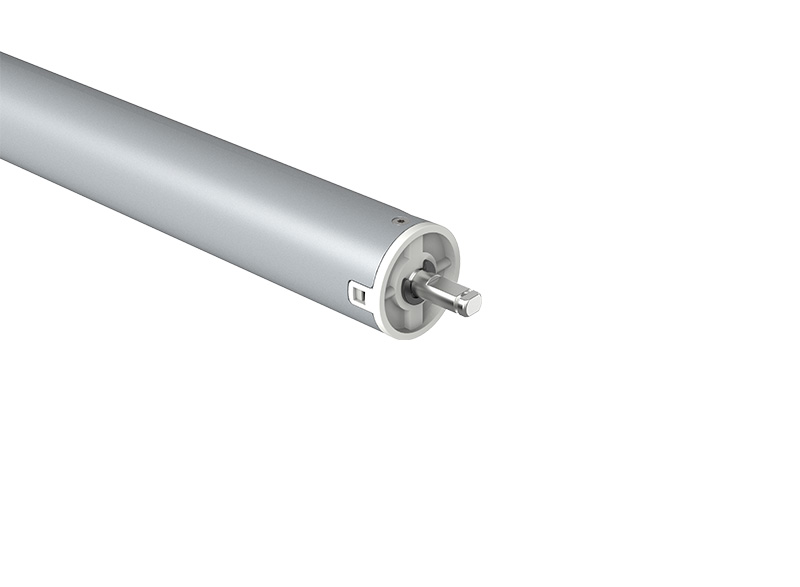

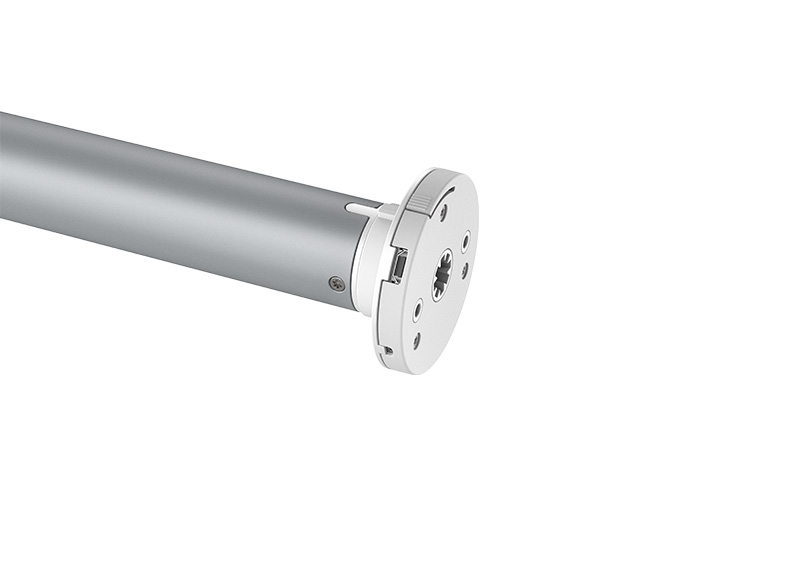

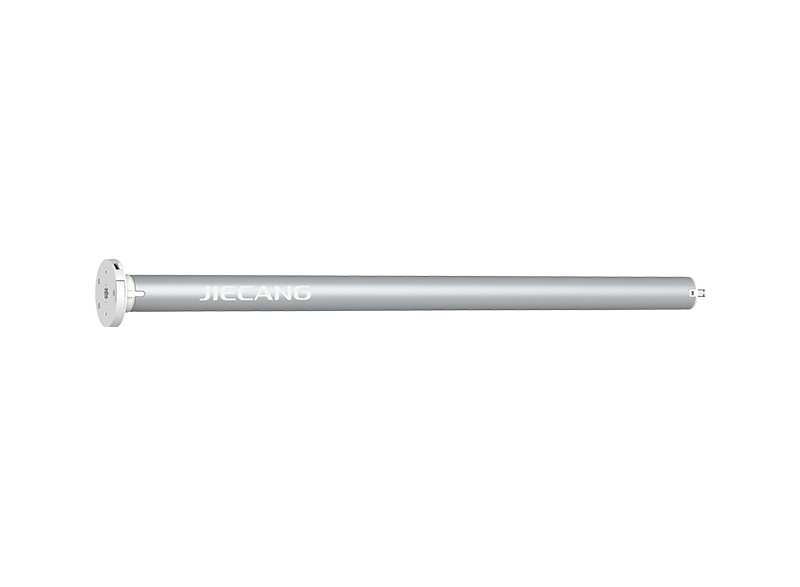

JCD25STE
Ф25mm DC Tubular Smart motor-external module

Features

1. Various torque for widely applicate
2. Extenal Zigbee/Wifi module, App and Smart speaker control
3. Built-in transformer, AC input
4. Built-in wireless receiver, electronic limit
5. Patented spring arm button design on motor head
6. Thinnest motor head design, minimize light transmission gap
7. Patented silent motor design, running noise <31dB
8. 3 speeds adjustable
9. Stall Protection
10. Easily set up/down limit, and favorite position

Control

W1/W2/W3/W5 series Emitter

Power supply

Accessories(optional)

40 Slotted curved edge pipe

40 Slotted curved edge pipe

40 straight groove tube

40 straight groove tube

Product Features

Silent technology

The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB
Intelligent control

Built-in Zigbee module to achieve a variety of intelligent control methods (mobile app and voice control) and easy integration with home automation systems
Flush management

Precise percentage control, perfect alignment between roller blinds during up/down running;

More Details

Data Download

User Manual

Product Parameter

Model	Rated torque(N.m)	Output speed(rpm)	Rated voltage(V)	Rated current(A)	Rated power(W)	Frequency(MHz)	Power supply(V/A)	Weight(kg)	Length(mm)	IP degree
JCD25STE-0730	0.7	25/30/35	AC 220	0.8	9.6	433+ External WiFi/Zigbee	AC 220	0.5	494	IP20
JCD25STEW-0730	0.7	25/30/35	AC 220	0.8	9.6	433+ built-in WiFi	AC 220	0.5	494	IP20
JCD25STEZ-0730	0.7	25/30/35	AC 220	0.8	9.6	433+ built-in Zigbee	AC 220	0.5	494	IP20
JCD25STE-1130	1.1	25/30/35	AC 220	1	12	433+ External WiFi/Zigbee	AC 220	0.5	494	IP20
JCD25STEW-1130	1.1	25/30/35	AC 220	1	12	433+ built-in WiFi	AC 220	0.5	494	IP20
JCD25STEZ-1130	1.1	25/30/35	AC 220	1	12	433+ built-in Zigbee	AC 220	0.5	494	IP20
JCD25STE-1525	1.5	20/25/28	AC 220	1.1	12	433+ External WiFi/Zigbee	AC 220	0.5	494	IP20
JCD25STEW-1525	1.5	20/25/28	AC 220	1.1	12	433+ built-in WiFi	AC 220	0.5	494	IP20
JCD25STEZ-1525	1.5	20/25/28	AC 220	1.1	12	433+ built-in Zigbee	AC 220	0.5	494	IP20
