DC Tubular Motor

JCD25-Series

Certification

Application

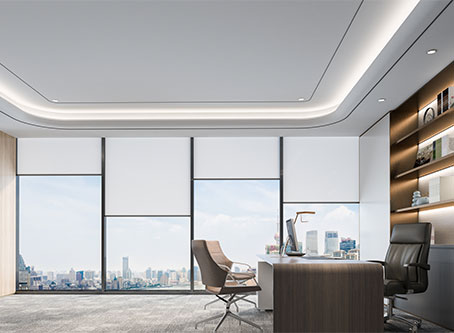

Indoor roller blinds

Indoor roller blinds

Shangri-La Blinds

Shangri-La Blinds

Roman Blinds

Roman Blinds

Aluminum Venetian blinds

Aluminum Venetian blinds

Honeycomb blinds

Honeycomb blinds

Sheer Blinds

Sheer Blinds

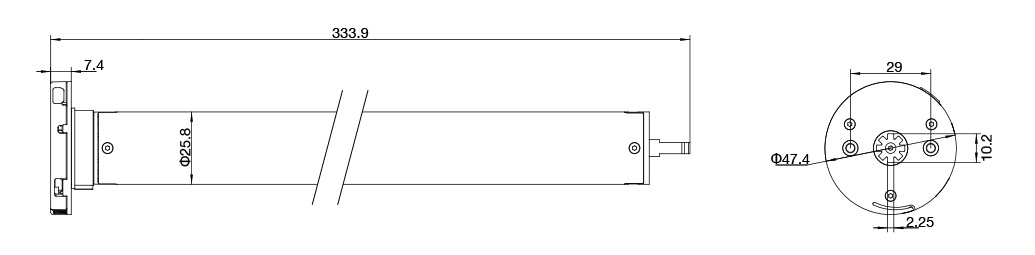

Dimension Drawing

*Click for larger drawings

Product

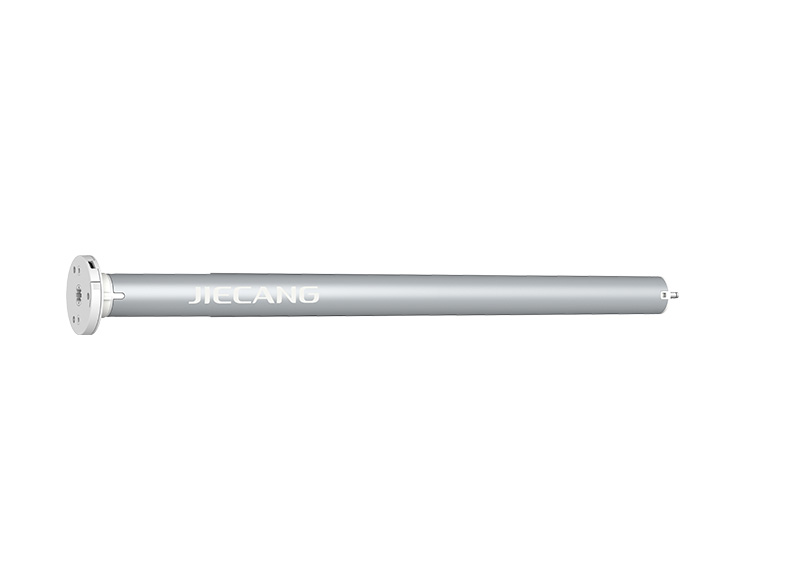

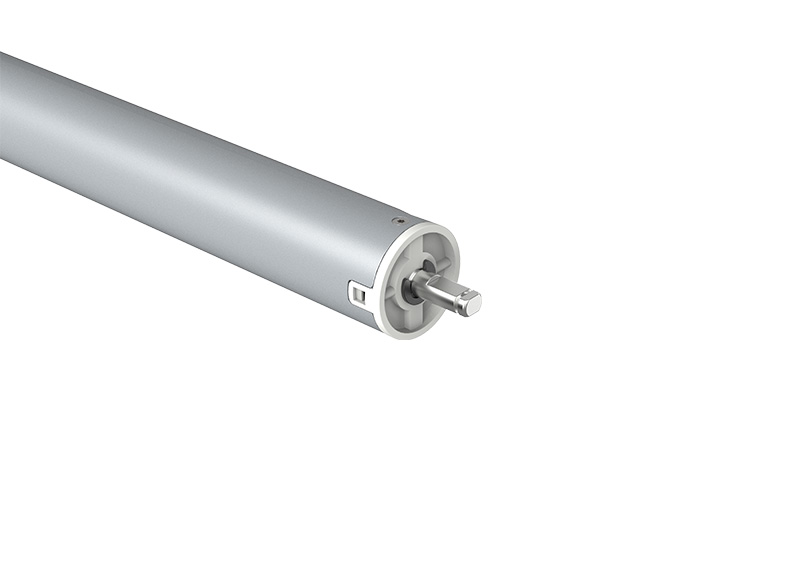

JCD25SAEZ
Ф25mm DC Tubular Smart motor--Built-in Zigbee

Features

1. Various torque for widely applicate
2. Built-in Zigbee module, App and Smart speaker control
3. Extenal adapter, short motor length
4. Built-in wireless receiver, electronic limit

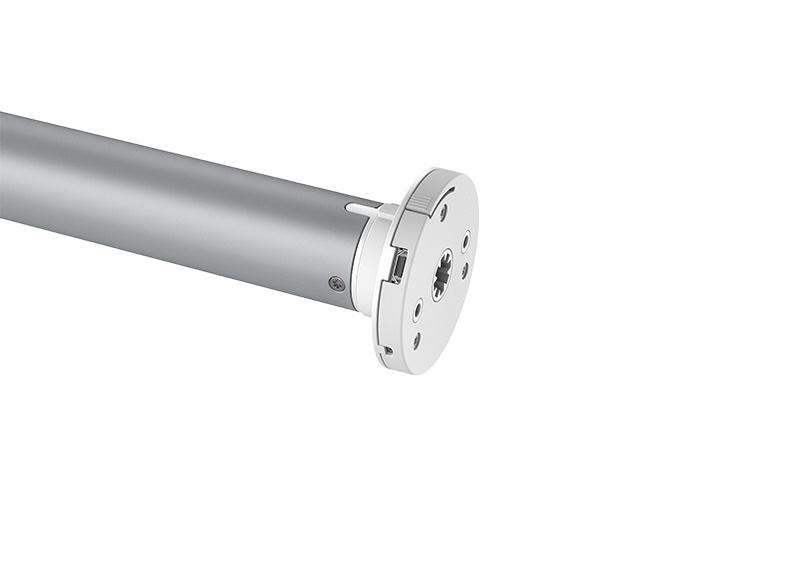

5. Patented spring arm button design on motor head
6. Thinnest motor head design, minimize light transmission gap
7. Patented silent motor design, running noise <31dB
8. 3 speeds adjustable
9. Stall Protection
10. Easily set up/down limit, and favorite position

Control

1.W1/W2/W3/W5 series Emitter

2.App

3.Smart speaker

Power supply

Accessories(optional)

40 Slotted curved edge pipe

40 Slotted curved edge pipe

40 straight groove tube

40 straight groove tube

Product Features

Silent technology

The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB
Intelligent control

Built-in Zigbee module to achieve a variety of intelligent control methods (mobile app and voice control) and easy integration with home automation systems
Flush management

Precise percentage control, perfect alignment between roller blinds during up/down running;

More Details

Data Download

User Manual

Product Parameter

Model	Rated torque(N.m)	Output speed(rpm)	Rated voltage(V)	Rated current(A)	Rated power(W)	Frequency(MHz)	Power supply(V/A)	Weight(kg)	Length(mm)	IP degree
JCD25SAEZ-0730	0.7	25/30/35	12	0.8	9.6	433+ built-in Zigbee	Adapter 12V/2A	0.61	564	IP20
JCD25SAE-0730	0.7	25/30/35	12	0.8	9.6	433+ External WiFi/Zigbee	Adapter12V/2A	0.4	334	IP20
JCD25SAEZ-1130	1.1	25/30/35	12	1	12	433+ built-in Zigbee	Adapter 12V/2A	0.62	564	IP20
JCD25SAEW-1130	1.1	25/30/35	12	1	12	433+ built-in WiFi	Adapter 12V/2A	0.62	564	IP20
JCD25SAEZ-1525	1.5	20/25/28	12	1.1	12	433+ built-in Zigbee	Adapter 12V/2A	0.62	564	IP20
JCD25SAEW-1525	1.5	20/25/28	12	1.1	12	433+ built-in WiFi	Adapter 12V/2A	0.62	564	IP20
