AC Tubular Motor

JCA35-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

Indoor roller blinds

Indoor roller blinds

Roman Blinds

Roman Blinds

Wooden Venetian blinds

Wooden Venetian blinds

Projection screen

Projection screen

Roller Blinds

Roller Blinds

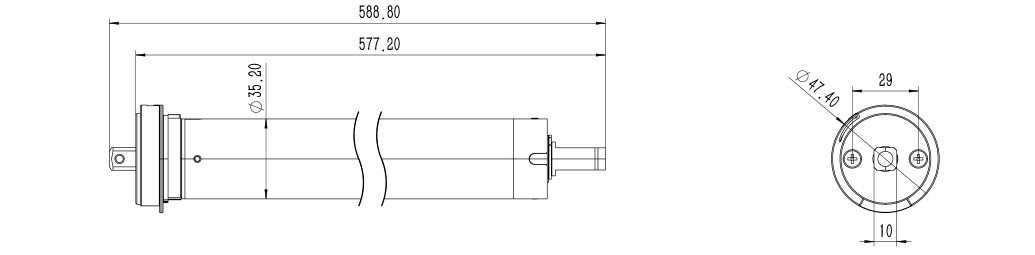

Dimension Drawing

*Click for larger drawings

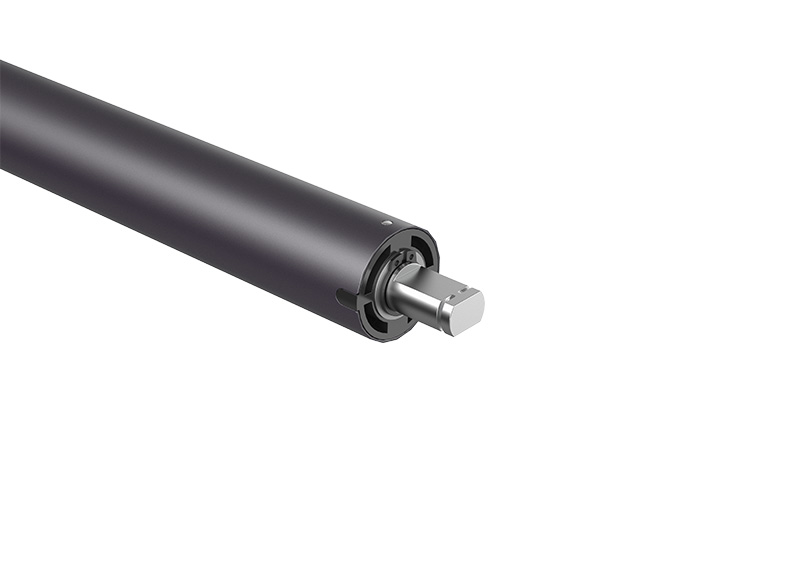

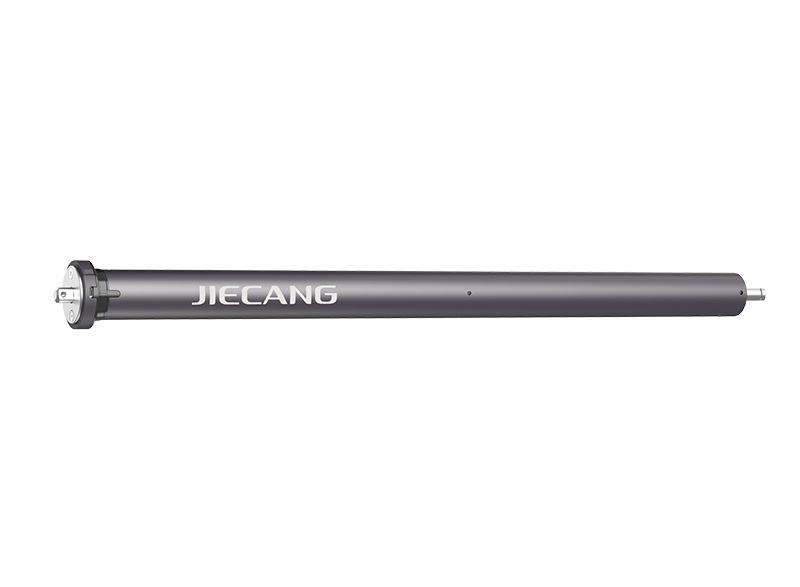

Product
  • JCA35SEW / JCA35SELW
  • Ф35mm AC Tubular Motor-built-in RF/electronic limit/WiFi
Features
  • 1. 110V/230V AC power supply
  • 2. Built-in RF receiver, maximum remote control distance up to 100 meters
  • 3. Hall scan to achieve accurate electronic limit
  • 4. Built-in WiFi module, App and smart speaker voice control
  • 5. Helical gear design for lower noise, operating noise <= 40dB
  • 6. Energy efficient
  • 7. Thinnest motor head design, minimize light transmission gap
  • 8. Stall protection
  • 9. Easily set up/down limit, and favorite position
  • 10. Overheating protection function
  • 11. Jog mode (tilt for venetian)
  • 12. 1.5 meter cable for easy installation
Control
1.W1/W2/W3/W5 series Emitter
2.App
3.Smart speaker

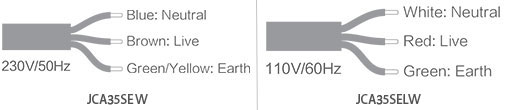

Power supply

Accessories(optional)

JCD-A-JH01

JCD-A-JH01

JCD-A-JL01

JCD-A-JL01

JCD-A-JH13

JCD-A-JH13

JCD-A-JH03

JCD-A-JH03

JCD-A-JL03

JCD-A-JL03

40mm octagonal tube

40mm octagonal tube

47mm tube

47mm tube

55mm tube

55mm tube

60mm octagonal tube

60mm octagonal tube

Product Features

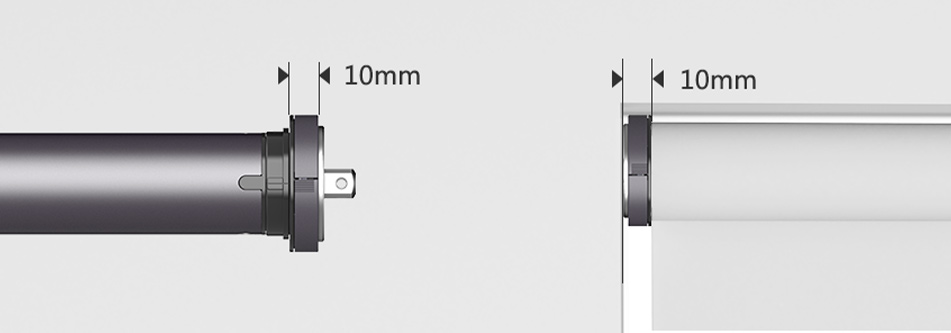

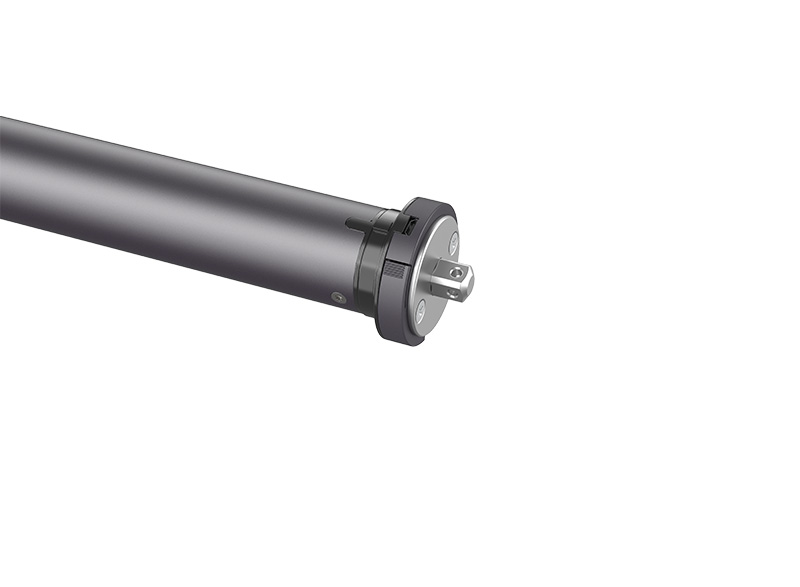

  • Thin Motor Head Design

    Unique 10mm Motor head design, minimize light transmission gap

  • High efficiency

    Adopting high-grade silicon steel sheet, low iron loss, high motor efficiency and long continuous working time

  • Intelligent control

    Built-in WiFi for multiple smart control methods (mobile app and voice control) and easy integration with home automation systems
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCA35SEW-4028 4 28 AC230 50Hz 0.55 126 433+Built-in WiFi AC 230V 1.41 589 IP44
JCA35SELW-6028 6 28 AC230 50Hz 0.64 146 433+Built-in WiFi AC 230V 1.41 589 IP44
JCA35SELW-8017 8 17 AC230 50Hz 0.55 126 433+Built-in WiFi AC 230V 1.41 589 IP44
JCA35SELW-10017 10 17 AC230 50Hz 0.64 146 433+Built-in WiFi AC 230V 1.41 589 IP44
JCA35SELW-13014 13 14 AC230 50Hz 0.64 146 433+Built-in WiFi AC 230V 1.41 589 IP44
JCA35SELW-6033 6 33 AC110 60Hz 1.5 175 433+Built-in WiFi AC 110V 1.41 589 IP44
JCA35SELW-10021 10 21 AC110 60Hz 1.5 175 433+Built-in WiFi AC 110V 1.41 589 IP44
Related Products
JCA35SE 10 17 AC230 50Hz 0.64 146 433 AC 230V 1.41 589 IP44
JCA35SEL 10 17 AC110 60Hz 0.64 146 433 AC 110V 1.41 589 IP44
JCA35SS 10 17 AC230 50Hz 0.64 146 433 AC 230V 1.26 493 IP44
JCA35SSL 10 17 AC110 60Hz 0.64 146 433 AC 110V 1.26 493 IP44
JCA35SR 10 17 AC230 50Hz 0.64 146 433 AC 230V 1.44 603 IP44
JCA35SRL 10 17 AC110 60Hz 0.64 146 433 AC 110V 1.44 603 IP44
