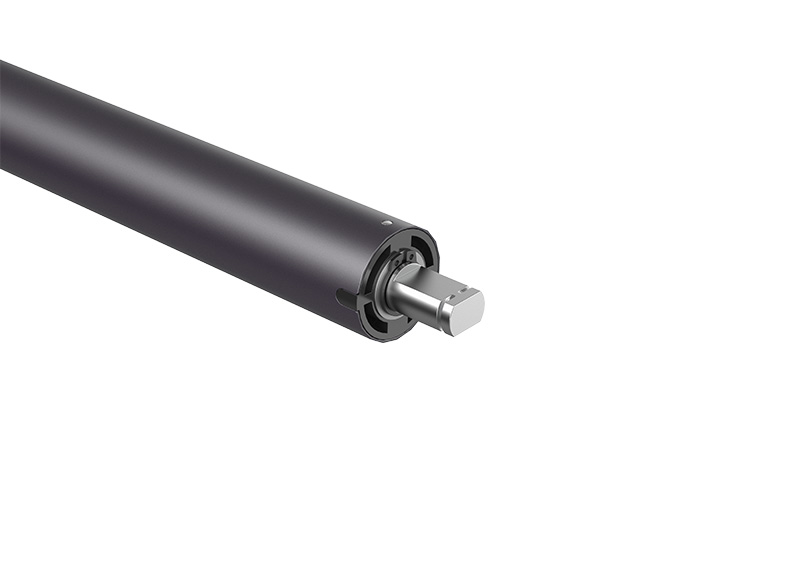

AC Tubular Motor

JCA35-Series

Certification

  • UL
  • CE
  • FC
  • ROHS

Application

Indoor roller blinds

Indoor roller blinds

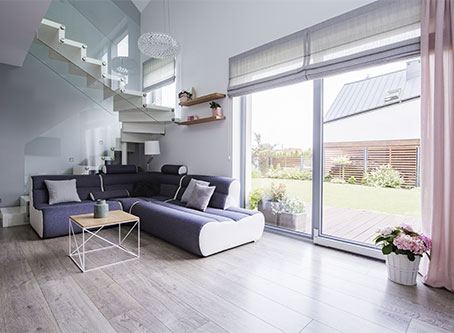

Roman Blinds

Roman Blinds

Wooden Venetian blinds

Wooden Venetian blinds

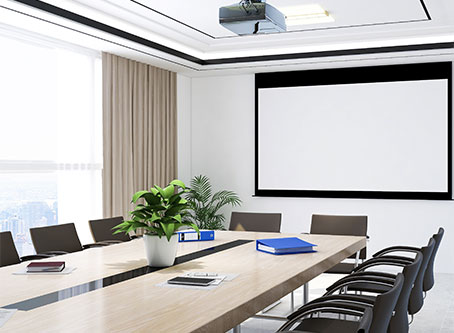

Projection screen

Projection screen

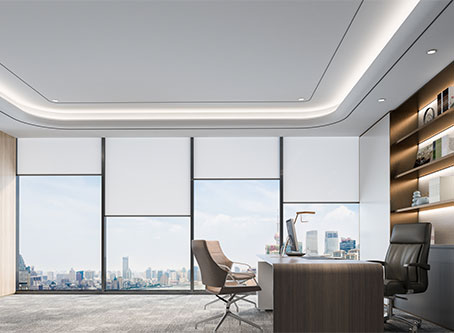

Roller Blinds

Roller Blinds

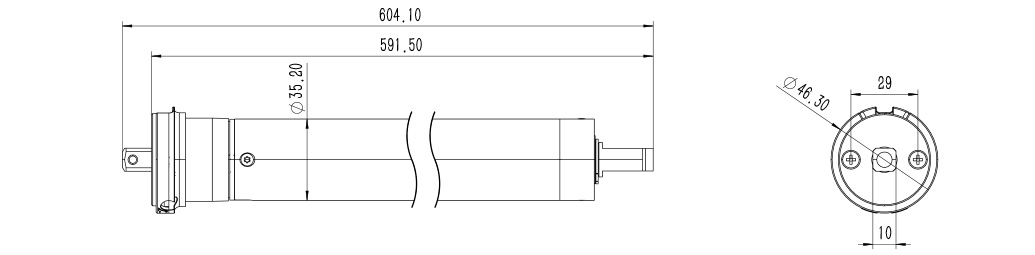

Dimension Drawing

*Click for larger drawings

Product

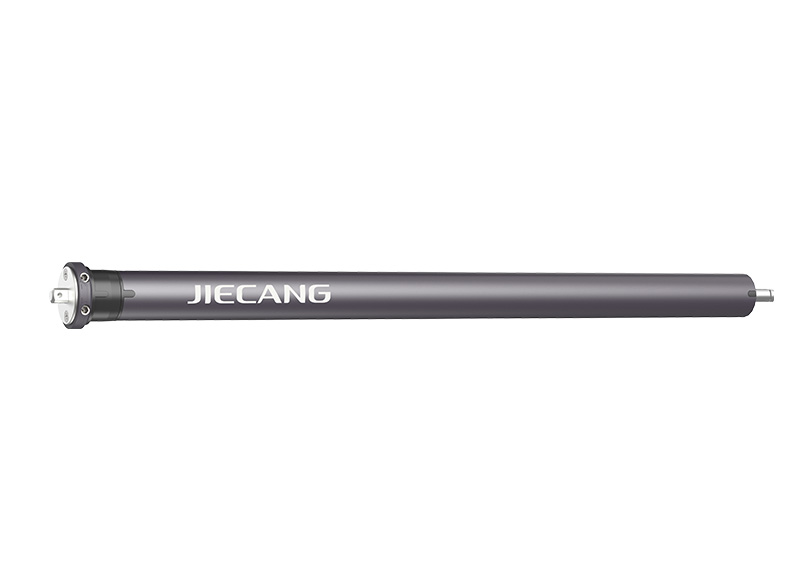

  • JCA35SR / JCA35SRL
  • Ф35mm AC Tubular motor - Built-in RF receiver/ Mechanical limit
Features
  • 1. 110V/230V AC power supply
  • 2. Standard mechanical limit, intuitive adjustment of upper and lower limit position
  • 3. Built-in RF receiver, maximum remote control distance up to 100 meters
  • 4. Helical gear design for lower noise, operating noise <= 40dB
  • 5. Energy efficient
  • 6. Thinnest motor head design, minimize light transmission gap
  • 7. Stall protection
  • 8. Easily set up/down limit, and favorite position
  • 9. Overheating protection function
  • 10. Jog mode (tilt for venetian)
  • 11. 1.5 meter cable for easy installation
Control
W1/W2/W3/W5 series Emitter

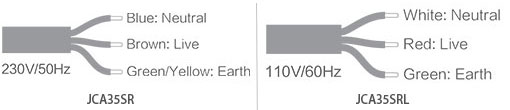

Power supply

Accessories(optional)

JCD-A-JH01

JCD-A-JH01

JCD-A-JL01

JCD-A-JL01

JCD-A-JH13

JCD-A-JH13

JCD-A-JH03

JCD-A-JH03

JCD-A-JL03

JCD-A-JL03

40mm octagonal tube

40mm octagonal tube

47mm tube

47mm tube

55mm tube

55mm tube

60mm octagonal tube

60mm octagonal tube

Product Features

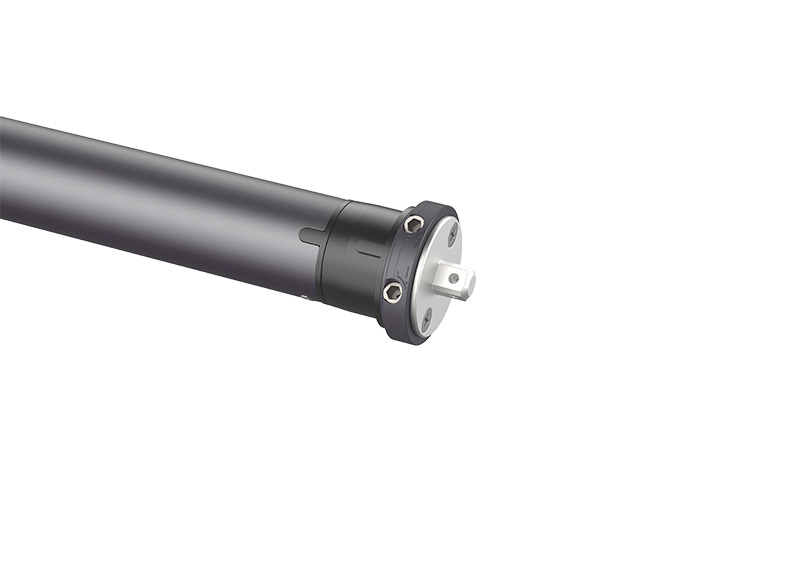

  • Thin Motor Head Design

    Unique 10mm Motor head design, minimize light transmission gap

  • High efficiency

    Adopting high-grade silicon steel sheet, low iron loss, high motor efficiency and long continuous working time
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCA35SR-4028 4 28 AC230 50Hz 0.55 126 433 AC 230V 1.44 603 IP44
JCA35SR-6028 6 28 AC230 50Hz 0.64 146 433 AC 230V 1.44 603 IP44
JCA35SR-8017 8 17 AC230 50Hz 0.55 126 433 AC 230V 1.44 603 IP44
JCA35SR-10017 10 17 AC230 50Hz 0.64 146 433 AC 230V 1.44 603 IP44
JCA35SR-13014 13 14 AC230 50Hz 0.64 146 433 AC 230V 1.44 603 IP44
JCA35SRL-6033 6 33 AC110 60Hz 1.5 175 433 AC 110V 1.44 603 IP44
JCA35SRL-10021 10 21 AC110 60Hz 1.5 175 433 AC 110V 1.44 603 IP44
