JCA35SS / JCA35SSL

Jiecang Linear Motion won the iF DESIGN AWARD 2021

Learn More No, thanks

AC Tubular Motor

JCA35 roller shade Motor

Certification

Application

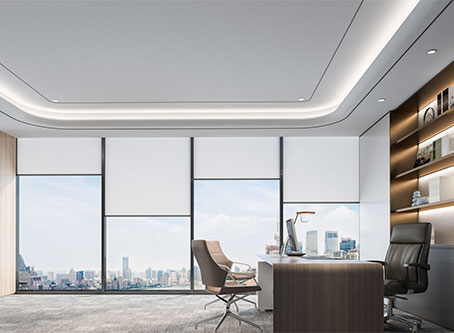

Indoor roller blinds

Indoor roller blinds

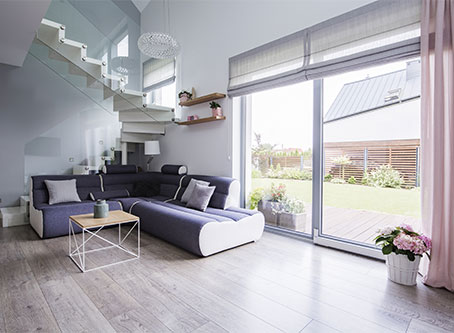

Roman Blinds

Roman Blinds

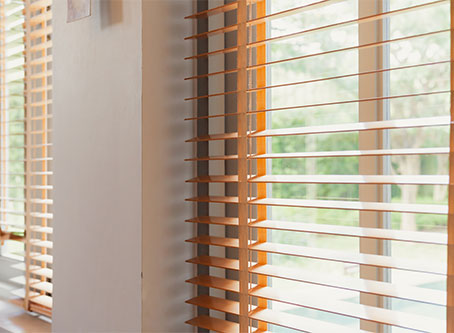

Wooden Venetian blinds

Wooden Venetian blinds

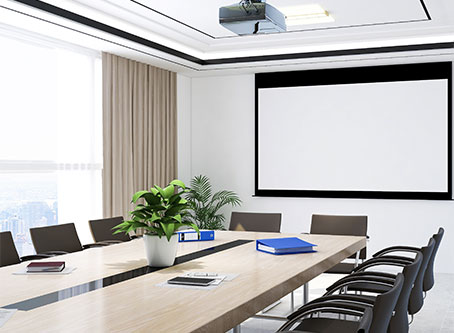

Projection screen

Projection screen

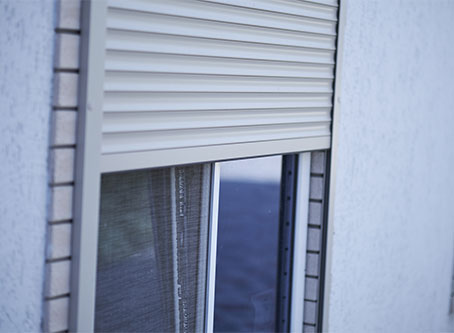

Roller Blinds

Roller Blinds

Dimension Drawing

*Click for larger drawings

Product

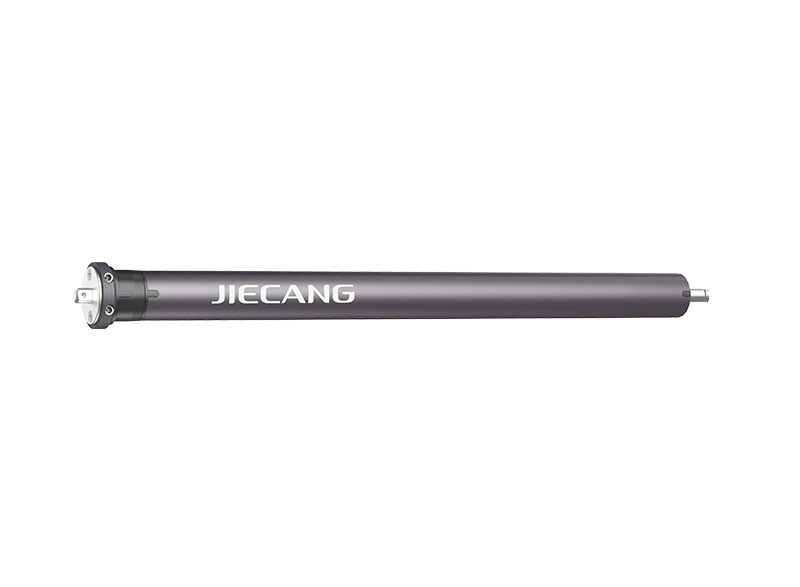

JCA35SS / JCA35SSL

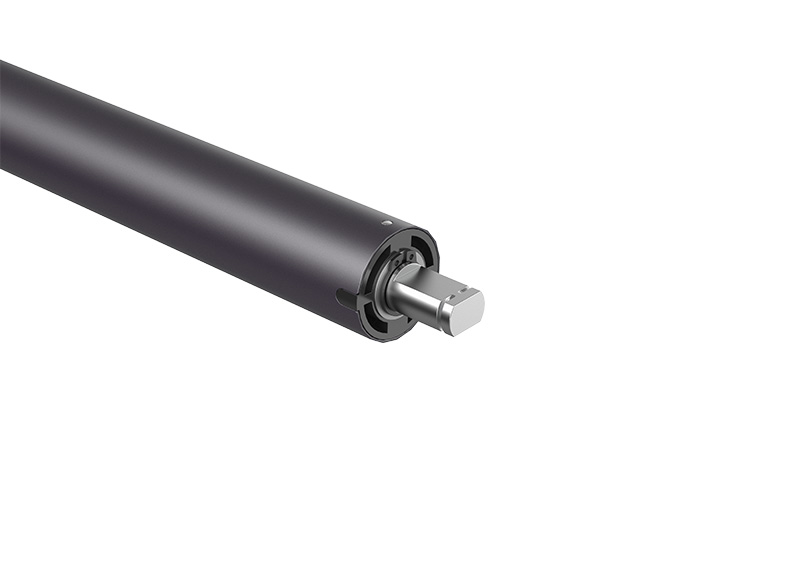

Ф35mm AC Tubular motor-Mechanical Limit

Features

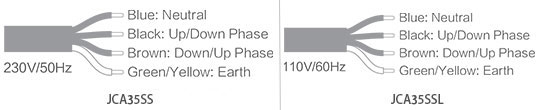

1. 110V/230V AC power supply
2. Standard mechanical limit, intuitive adjustment of upper and lower limit position
3. Helical gear design for lower noise, operating noise <= 40dB
4. Energy efficient
5. Thinnest motor head design, minimize light transmission gap
6. Stall protection
7. Easily set up/down limit, and favorite position
8. Overheating protection function
9. Jog mode (tilt for venetian)
10. 1.5 meter cable for easy installation

Control

W1/W2/W3/W5 series Emitter

Power supply

Accessories(optional)

40mm octagonal tube

40mm octagonal tube

60mm octagonal tube

60mm octagonal tube

Product Features

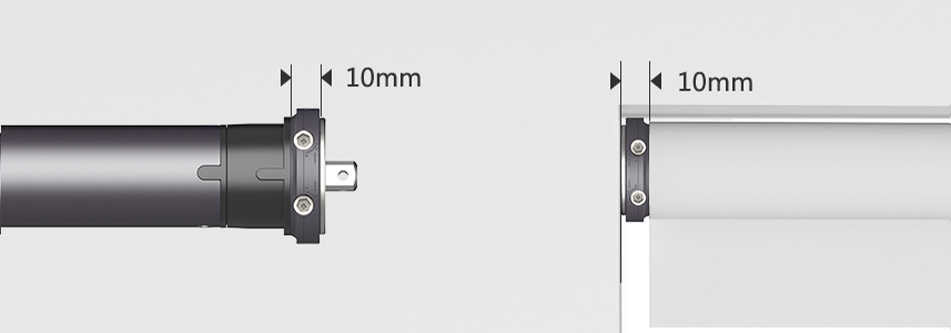

Thin Motor Head Design

Unique 10mm Motor head design, minimize light transmission gap
High efficiency

Adopting high-grade silicon steel sheet, low iron loss, high motor efficiency and long continuous working time

More Details

Data Download

User Manual

Product Parameter

Tubular Motor Model	Rated torque(N.m)	Output speed(rpm)	Rated voltage(V)	Rated current(A)	Rated power(W)	Frequency(MHz)	Power supply(V/A)	Weight(kg)	Length(mm)	IP degree
JCA35SS-4028	4	28	AC230 50Hz	0.55	126	433	AC 230V	1.26	493	IP44
JCA35SS-6028	6	28	AC230 50Hz	0.64	146	433	AC 230V	1.26	493	IP44
JCA35SS-8017	8	17	AC230 50Hz	0.55	126	433	AC 230V	1.26	493	IP44
JCA35SS-10017	10	17	AC230 50Hz	0.64	146	433	AC 230V	1.26	493	IP44
JCA35SS-13014	13	14	AC230 50Hz	0.64	146	433	AC 230V	1.26	493	IP44
JCA35SSL-6033	6	33	AC110 60Hz	1.5	175	433	AC 110V	1.26	493	IP44
JCA35SSL-10021	10	21	AC110 60Hz	1.5	175	433	AC 110V	1.26	493	IP44
Related Products
JCA35SR	10	17	AC230 50Hz	0.64	146	433	AC 230V	1.44	603	IP44
JCA35SRL	10	17	AC110 60Hz	0.64	146	433	AC 110V	1.44	603	IP44
JCA35SE	10	17	AC230 50Hz	0.64	146	433	AC 230V	1.41	589	IP44
JCA35SEL	10	17	AC110 60Hz	0.64	146	433	AC 110V	1.41	589	IP44
JCA35SEW	10	17	AC230 50Hz	0.64	146	433+ built-in WiFi	AC 230V	1.41	589	IP44
JCA35SELW	10	17	AC110 60Hz	0.64	146	433+ built-in WiFi	AC 110V	1.41	589	IP44
