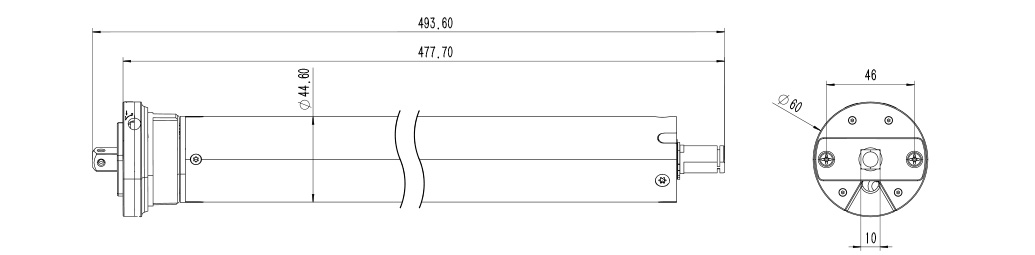

Dimension Drawing

*Click for larger drawings

Product

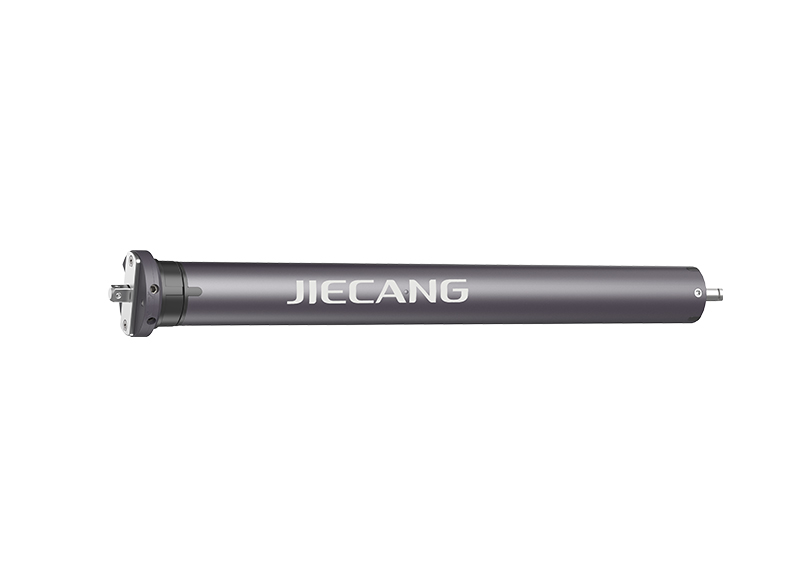

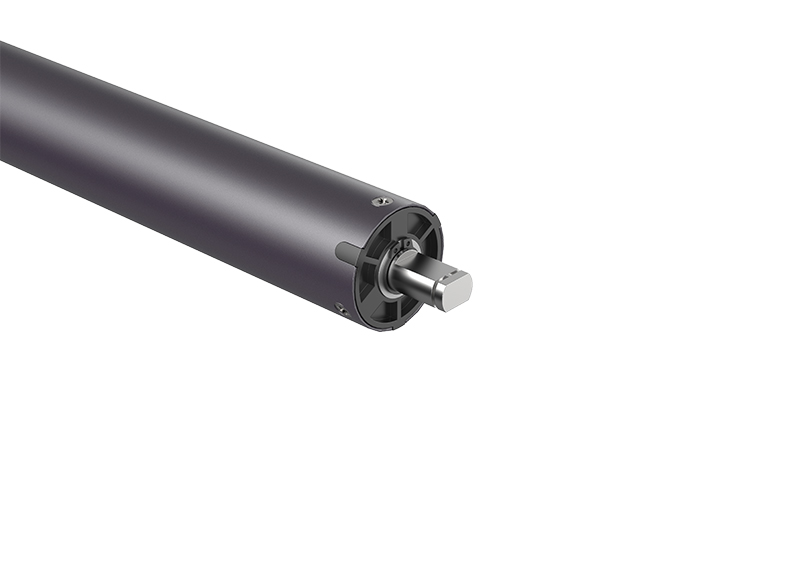

JCA45SS SSL
Ф45mm AC Tubular motor - Mechanical limit

Features

1. 110V/230V AC power supply
2. Standard mechanical limit, intuitive adjustment of upper and lower limit position
3. Helical gear design for lower noise, operating noise <= 40dB
4. Energy efficient
5. Thinnest motor head design, minimize light transmission gap
6. Stall protection
7. Easily set up/down limit, and favorite position
8. Overheating protection function
9. Jog mode (tilt for venetian)
10. 1.5 meter cable for easy installation

Control

W1/W2/W3/W5 series Emitter

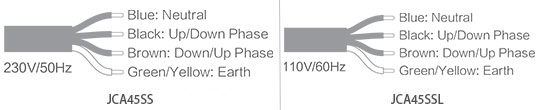

Power supply

Accessories(optional)

Product Features

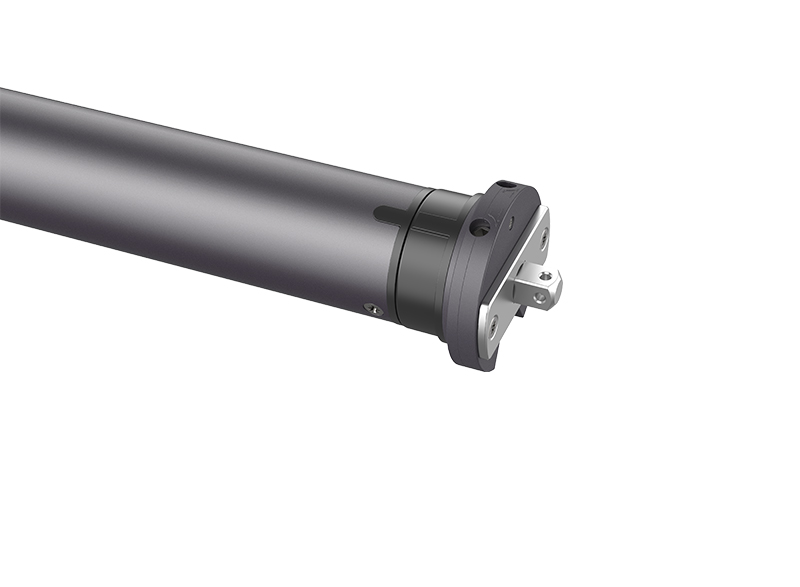

Thin Motor Head Design

Unique 10mm Motor head design, minimize light transmission gap
High efficiency

Adopting high-grade silicon steel sheet, low iron loss, high motor efficiency and long continuous working time

More Details

Data Download

User Manual

Product Parameter

Model	Rated torque(N.m)	Output speed(rpm)	Rated voltage(V)	Rated current(A)	Rated power(W)	Frequency(MHz)	Power supply(V/A)	Weight(kg)	Length(mm)	IP degree
JCA45SS-10015	10	15	AC230 50Hz	0.66	151	433	AC 230V	1.76	484	IP44
JCA45SS-10017	10	17	AC230 50Hz	0.72	160	433	AC 230V	1.76	484	IP44
JCA45SS-20015	20	15	AC230 50Hz	0.74	166	433	AC 230V	1.76	494	IP44
JCA45SS-20017	20	17	AC230 50Hz	0.76	168	433	AC 230V	1.76	494	IP44
JCA45SS-20026	20	26	AC230 50Hz	0.98	225	433	AC 230V	1.76	494	IP44
JCA45SS-30015	30	15	AC230 50Hz	0.88	188	433	AC 230V	1.76	524	IP44
JCA45SS-40015	40	15	AC230 50Hz	0.98	225	433	AC 230V	1.76	534	IP44
JCA45SS-50012	50	12	AC230 50Hz	0.98	225	433	AC 230V	1.76	534	IP44
JCA45SS-20017	20	17	AC110 60Hz	1.54	182	433	AC 110V	1.76	494	IP44
JCA45SSL-20033	20	33	AC110 60Hz	2.42	240	433	AC 110V	1.76	524	IP44
JCA45SSL-30017	30	17	AC110 60Hz	2.42	240	433	AC 110V	1.76	534	IP44
JCA45SSL-40013	40	13	AC110 60Hz	2.65	235	433	AC 110V	1.76	534	IP44
JCA45SSL-50013	50	13	AC110 60Hz	2.42	240	433	AC 110V	1.76	534	IP44
