Venetian Blinds Motor

JCV24-Series

Application

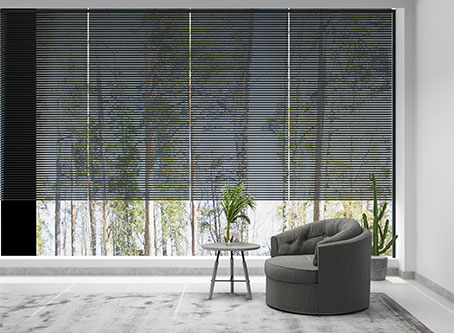

Aluminum Venetian blinds

Aluminum Venetian blinds

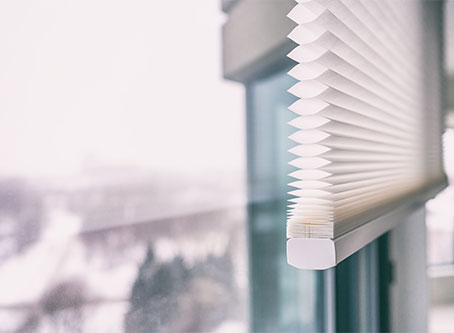

Honeycomb blinds

Honeycomb blinds

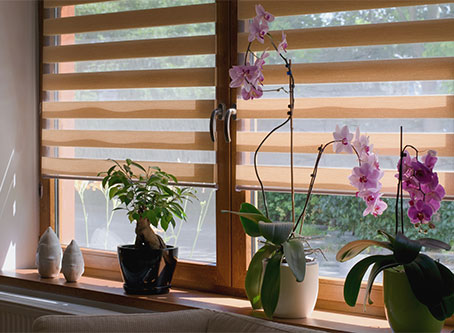

Sheer Blinds

Sheer Blinds

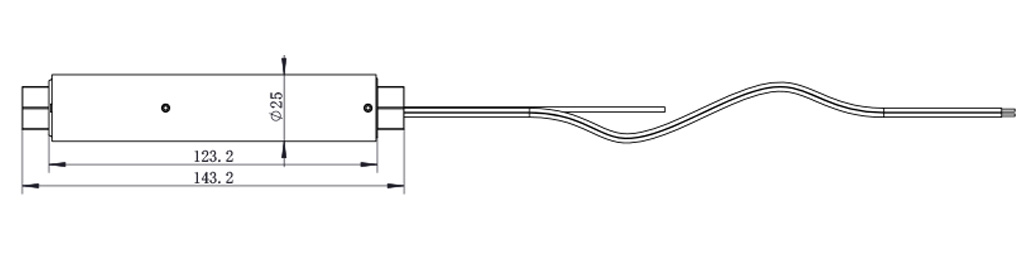

Dimension Drawing

*Click for larger drawings

Product

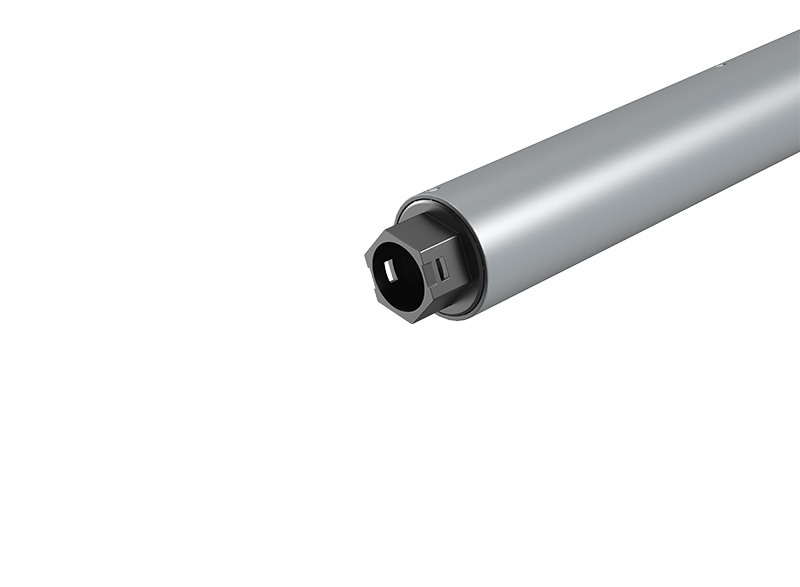

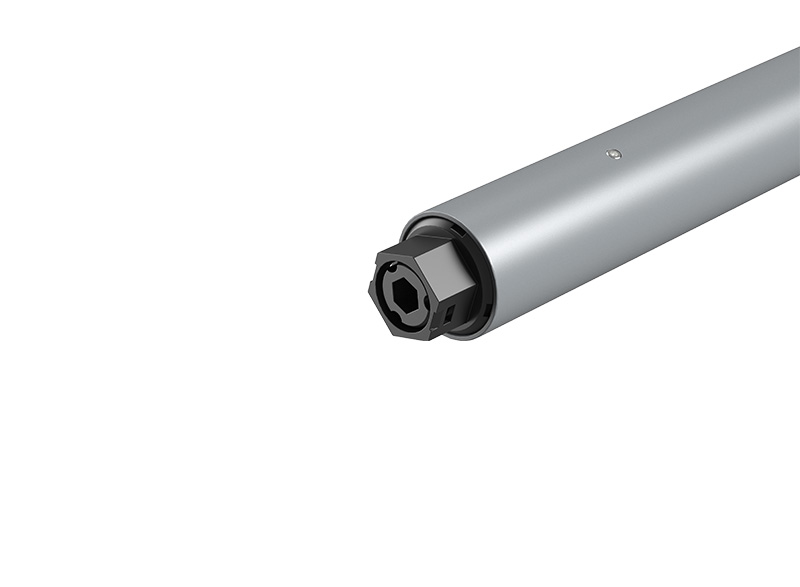

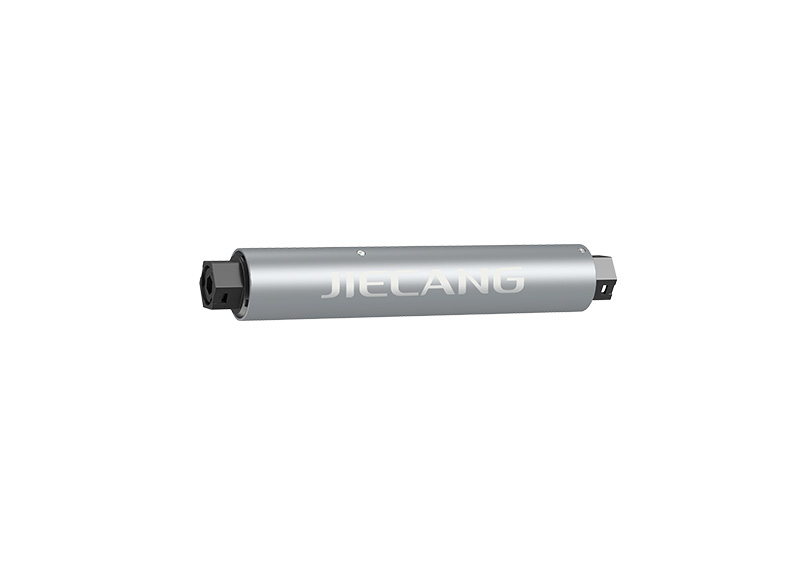

  • JCV24SAES
  • Venetian motor-single shaft output
Features
  • 1. Single axis output
  • 2. Spot dimming
  • 3. Built-in wireless reception, electronic travel
  • 4. Unique planetary reduction design, large carrying torque
  • 5. unique noise reduction design, operating noise <= 31dB
  • 6. protection function when encountering obstruction
  • 7. 3-speed adjustable
  • 8. Quick Limit Adjustment and Favorite Position setting
Control
W1/W2/W3/W5 series Emitter
Power supply

Product Features

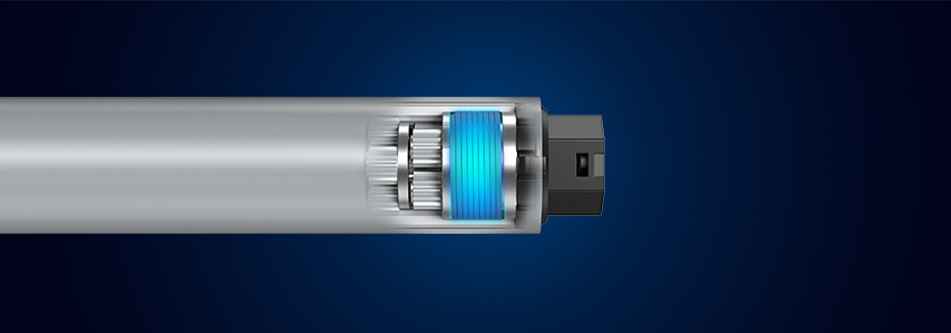

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

  • Robust brakes

    Unique reduction gear design, safe and reliable
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCV24SAES 0.6 20/30/40 12 0.8 9.6 433 Adapter12V/1A 0.20 143 IP20
Related Products
JCV24SAED 0.8 20/30/40 12 0.8 9.6 433 Adapter12V/1A 0.28 208 IP20
JCV24SAEW 0.8 20/30/40 12 0.8 9.6 433+WiFi Adapter12V/1A 0.28 208 IP20
