Curtain Motor

JCC50-Series

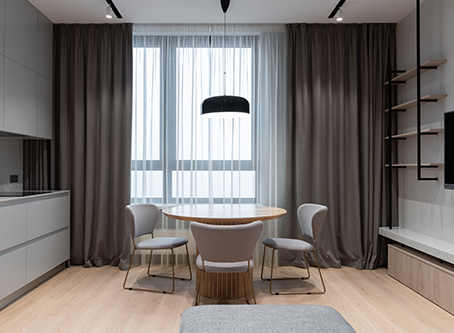

Application

Curtain

Curtain

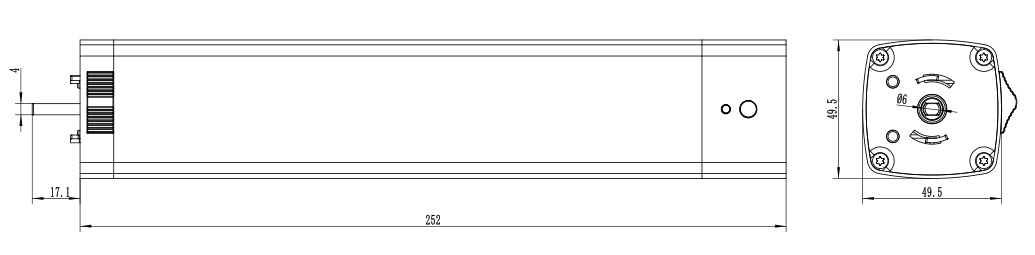

Dimension Drawing

*Click for larger drawings

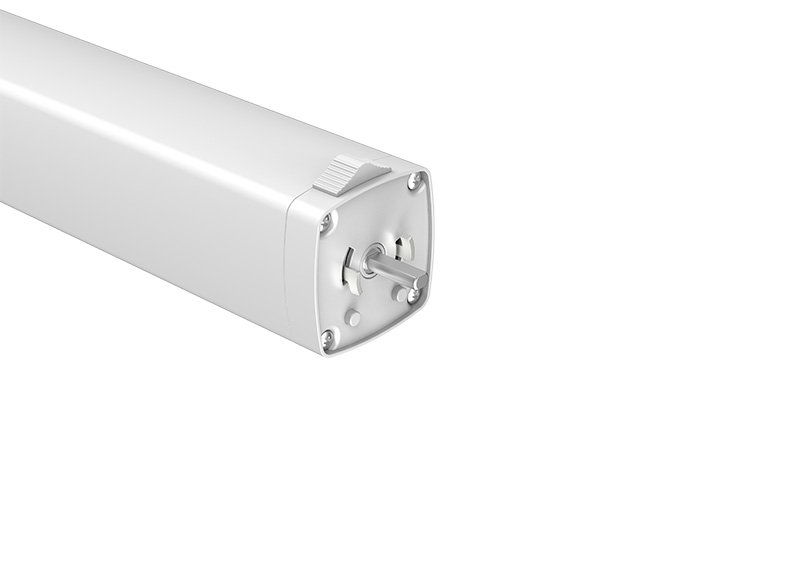

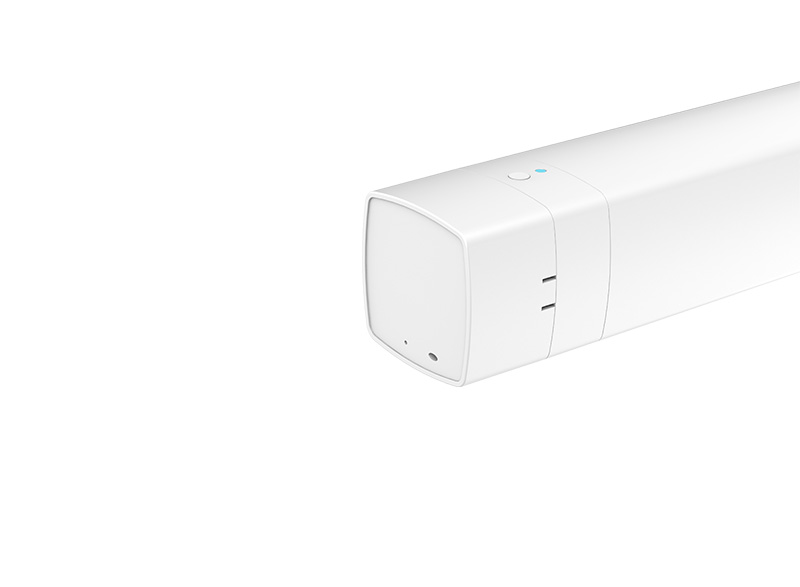

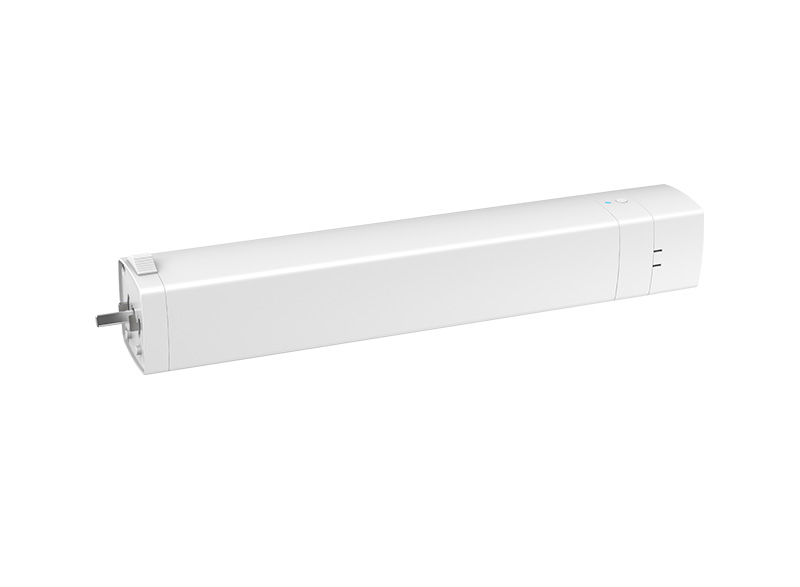

Product
  • JCC50SAEW
  • Curtain motor - Built-in WiFi module
Features
  • 1. Stop/run by pulling fabric, manual operation available when power failure;
  • 2. Soft start/Soft stop;
  • 3. Auto limit settingm,Preferred Stop Position;
  • 4. Wifi module built in, smartphone and smartspeaker control;
  • 5. Special NVH design, operation noise <33dBA;
  • 6. Stall Pretection;
  • 7. Speed adjustable;
  • 8. High torque motor, rate loading 50Kgs;
  • 9. 360° Hall sensor scan, accurate positioning;
Control
1.W1/W2/W3/W5 series Emitter
2.App
3.Smart speaker
Power supply

Accessories(optional)

Transmission Box

Transmission Box

Product Features

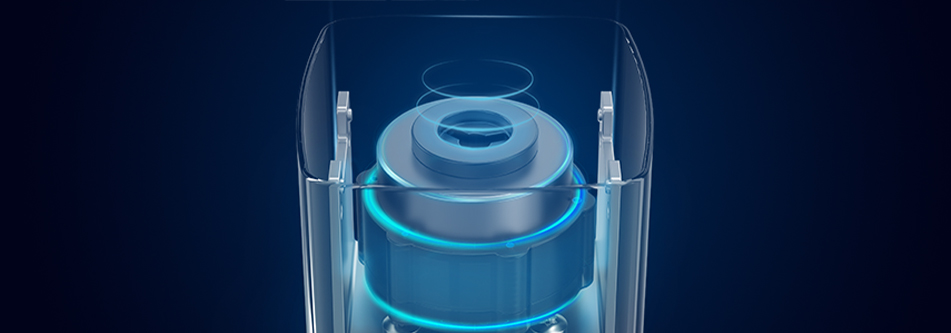

  • Silent technology

    The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, and brings users excellent and sustainable acoustic comfort. The motor running noise is <=31dB

  • Intelligent control

    Built-in Zigbee module to achieve a variety of intelligent control methods (mobile app and voice control) and easy integration with home automation systems

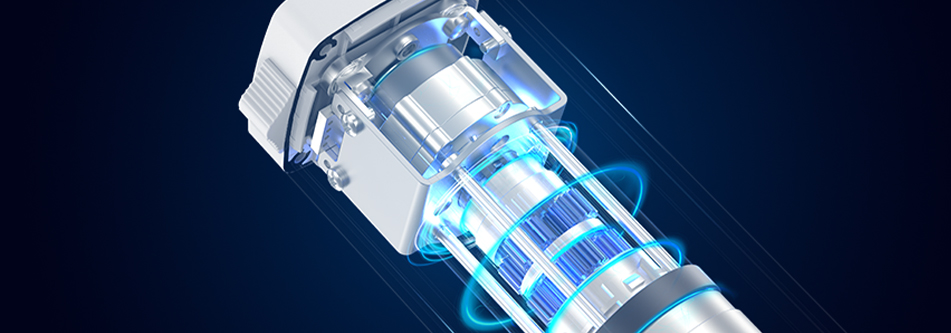

  • High sensitivity Hall scan

    Hand pull start distance less than or equal to 3cm
More Details

Data Download

Product Parameter

Model Rated torque(N.m) Output speed(rpm) Rated voltage(V) Rated current(A) Rated power(W) Frequency(MHz) Power supply(V/A) Weight(kg) Length(mm) IP degree
JCC50SAEW 1.2 12/14/16 12 0.9 24 433+ built-in WiFi Adapter12V/4A 0.80 269 IP40
Related Products
JCC50STE 1.2 12/14/16 AC110-220 0.1-0.2 24 433 AC110-230 0.90 329 IP40
JCC50STEW 1.2 12/14/16 AC110-220 0.1-0.2 24 433+ built-in WiFi AC110-230 0.90 329 IP40
JCC50STRS 1.2 12/14/16 AC110-220 0.1-0.2 24 433+RS485 AC110-230 0.90 329 IP40
JCC50SLEU 1.2 12/14/16 14.8 1.6 24 433 Charger5V/2A 1.00 365 IP40
