Emitter

W5-Series

Certification

  • CE
  • FC
Product

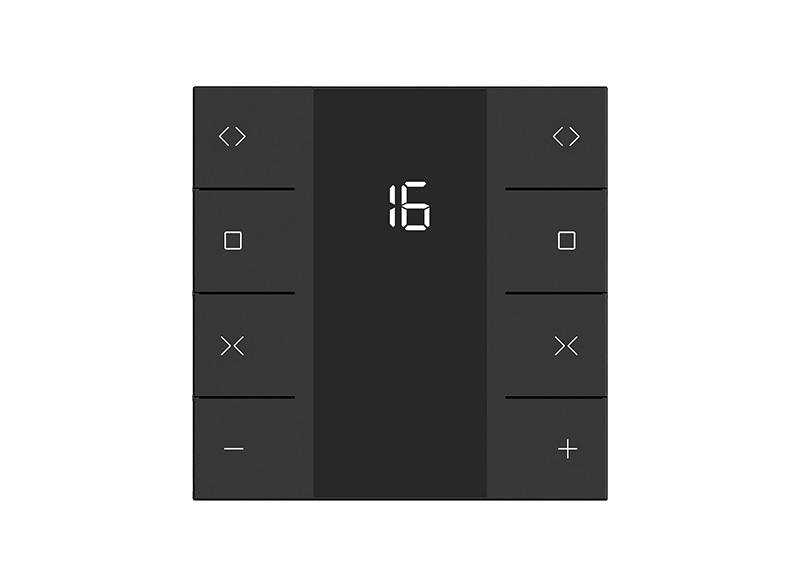

  • W5C1-B
  • Wall type 16-channel dual-channel LCD transmitter-general
Features
  • 1. 16 single-channel dual-channel on the wall, one button controls two curtains at the same time
  • 2. Two colors are available
  • 3. Embedded efficient and easy to operate software
  • 4. Group control of multiple curtain lifting functions
  • 5. Percentage operation function
  • 6. low battery alert
  • 7. low power standby
  • 8. child lock function

Data Download

Product Parameter

  • 1. Electrical performance: Standard(standard)
  • 2. Battery type：CR2430*3V*2
  • 3. Wireless frequency：433.92MHz±100KHz
  • 4. Operating temperature：-10℃ ~60℃
  • 5. Transmitting distance: 100m
